Commercial Direct-View LED Displays & Video Walls

Seamless, bezel-free direct-view LED video walls and modular display systems engineered for mission-critical command centers, luxury corporate boardrooms, high-brightness outdoor media facades, fast-lock live staging, and custom curved architecture. Built with Flip-Chip COB surface protection, 16:9 golden ratio cabinets, modular-height columns, 10,000-nit daylight visibility, and full front magnetic vacuum servicing.

Request LED Display Quote Command & Control Blueprint Pixel Pitch Calculator Guide

Commercial Direct-View LED Displays and Video Walls

Full Architecture Matrix

Six Dedicated Direct-View LED Display Families

Engineered portfolio spanning ultra-fine pitch command hubs, modular column wraps, pre-assembled executive meeting systems, outdoor media facades, touring stages, and flexible organic curves.

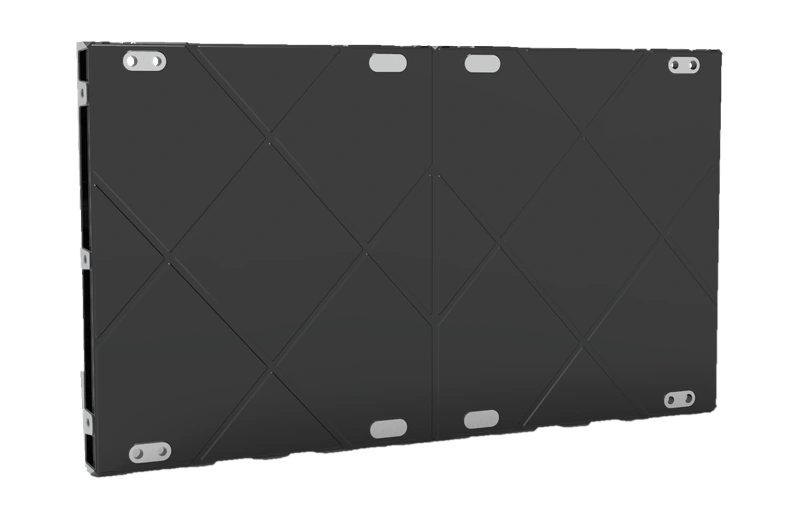

Ultra-Fine Pitch Indoor LED Display Cabinet

Command & Control

Ultra-Fine Pitch Indoor LED (P0.9 – P1.8)

Golden 16:9 cabinet ratio (600×337.5mm) with Flip-Chip COB surface protection, 600 nits calibrated luminance, 100% front magnetic servicing, and dual power/signal loop redundancy for mission-critical defense centers, emergency command hubs, and broadcast studios.

Pixel Pitches: P0.9, P1.2, P1.5, P1.8 mm
Cabinet: 600 × 337.5 mm (16:9 Golden Aspect Ratio)
Encapsulation: Flip-Chip COB • High Black Uniformity
Luminance & Contrast: 600 nits • 10,000:1 Dynamic Contrast
Maintenance: 100% Front Vacuum-Tool Magnetic Extraction
Primary Use: Defense Command, C-Suite Video Walls, Broadcast Studios

Inquire Fine-Pitch COB →

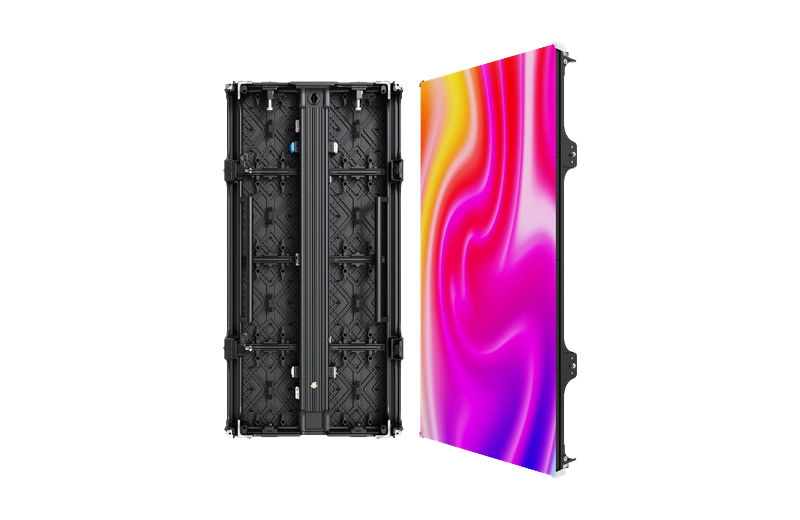

Modular-Height Indoor Fixed LED Display Cabinets

Architectural Interiors

Modular-Height Indoor Fixed LED (P1.5 – P3.9)

High-precision die-cast aluminum chassis in 3 modular heights (500mm, 750mm, 1000mm × 500mm width) with 45° chamfered edges for seamless 90° right-angle building corners and smooth architectural pillar wraps.

Pixel Pitches: P1.5, P1.9, P2.6, P2.9, P3.9 mm
Cabinet Heights: 500mm, 750mm, 1000mm (500mm standard width)
Creative Splicing: 45° Corner Chamfer • 90° Right Angle • Pillar Wraps
Luminance: 800 nits High-Clarity Indoor Output
Cabinet Construction: High-Precision CNC Die-Cast Aluminum
Primary Use: Corporate Atriums, Retail Flagships, Column Displays

Inquire Modular Fixed →

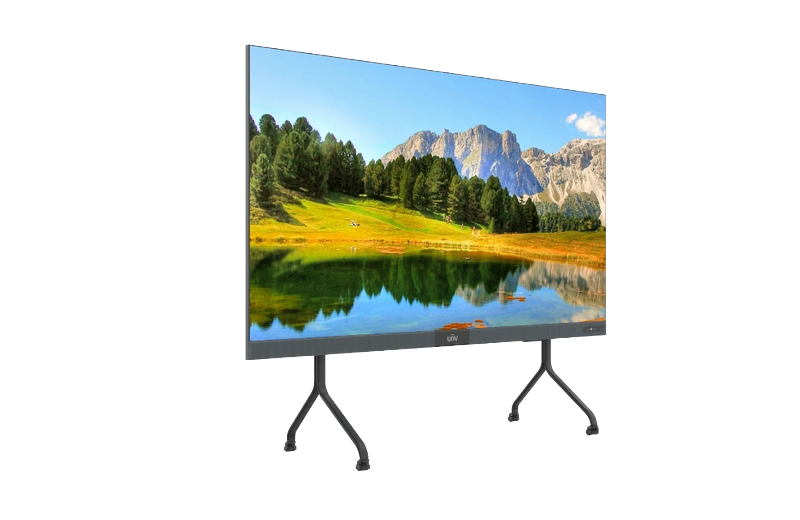

All-in-One Integrated Collaboration LED Display

Executive Collaboration

All-in-One Integrated LED (108″, 135″, 162″)

Pre-engineered 16:9 large-format visual systems integrating Flip-Chip COB display tiles, embedded Android 13 computing, studio-grade front soundbar, wireless multi-screen BYOD casting, and an ultra-slim under-35mm profile.

Diagonal Formats: 108", 135", 162" (Native 1080p / 4K UHD)
Pixel Pitches: P1.2, P1.5, P1.8 mm
All-in-One Integration: Controller, Stereo Soundbar & Wireless Cast
Installation: Rapid 2-Hour Wall Mount or Motorized Floor Stand
Profile & Weight: Under 35mm Total Depth • Slim Architectural Fit
Primary Use: Executive Boardrooms, Video Conferencing, VIP Auditoriums

Inquire All-in-One LED →

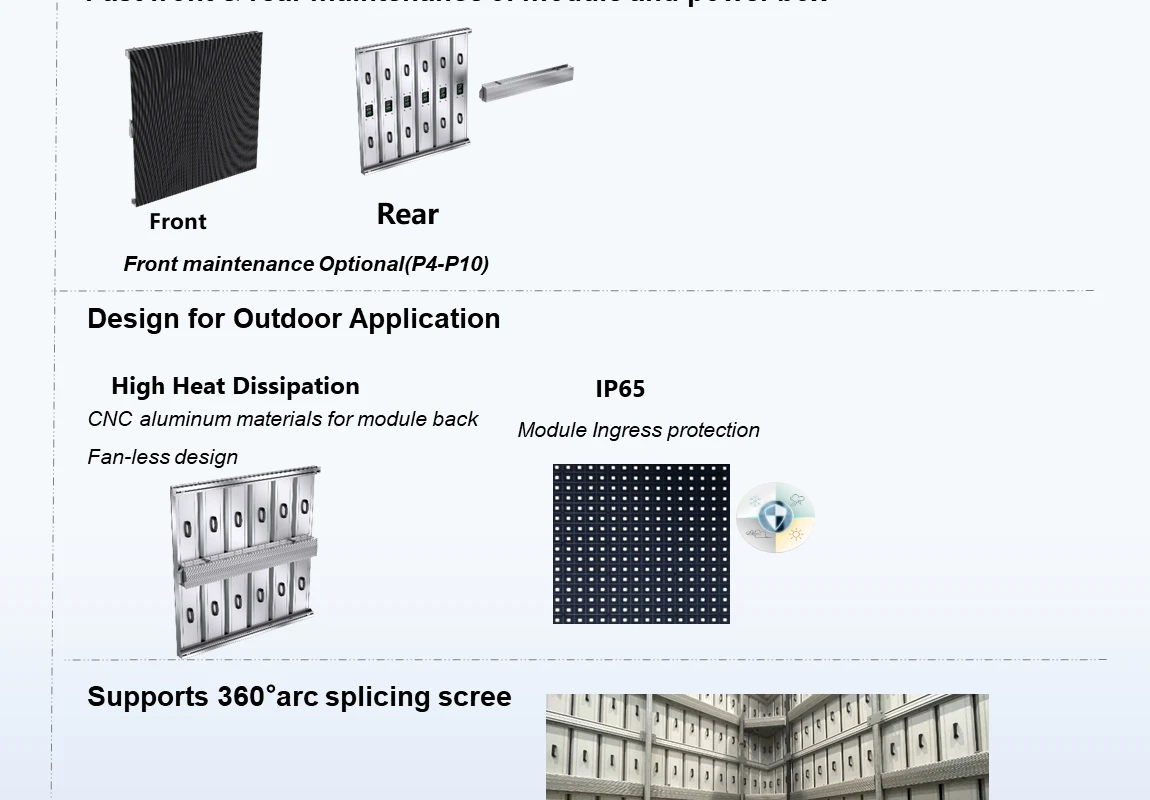

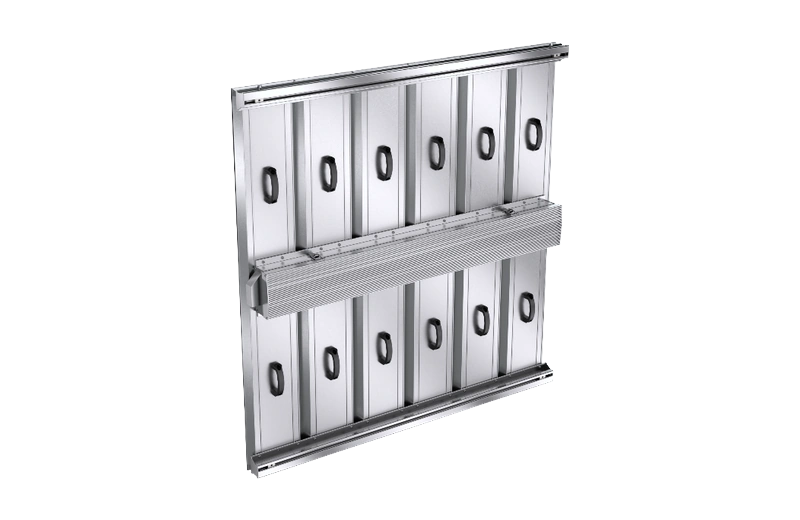

High-Luminance Outdoor Fixed LED Display

DOOH & Mega Facades

High-Luminance Outdoor Fixed LED (P2.5 – P10)

Heavy-duty magnesium-aluminum cabinets built to withstand extreme Middle East heat, intense solar radiation, and desert dust storms. Features 5,000 to 10,000 nits daylight output, IP65/IP66 sealing, and 360° arc concave/convex curve capability.

Pixel Pitches: P2.5, P3, P4, P5, P5.9, P6.67, P8, P10 mm
Cabinets: 640×640mm, 640×960mm, 960×960mm Enclosures
Luminance: 5,000 to 10,000 nits Direct Sunlight Readable
Weatherproofing: IP65 Front & IP54/IP65 Rear Ingress Rating
Maintenance: Fast Dual Front & Rear Access to Modules & Power Box
Primary Use: DOOH Roadside Billboards, Building Facades, Stadium Displays

Inquire Outdoor Fixed →

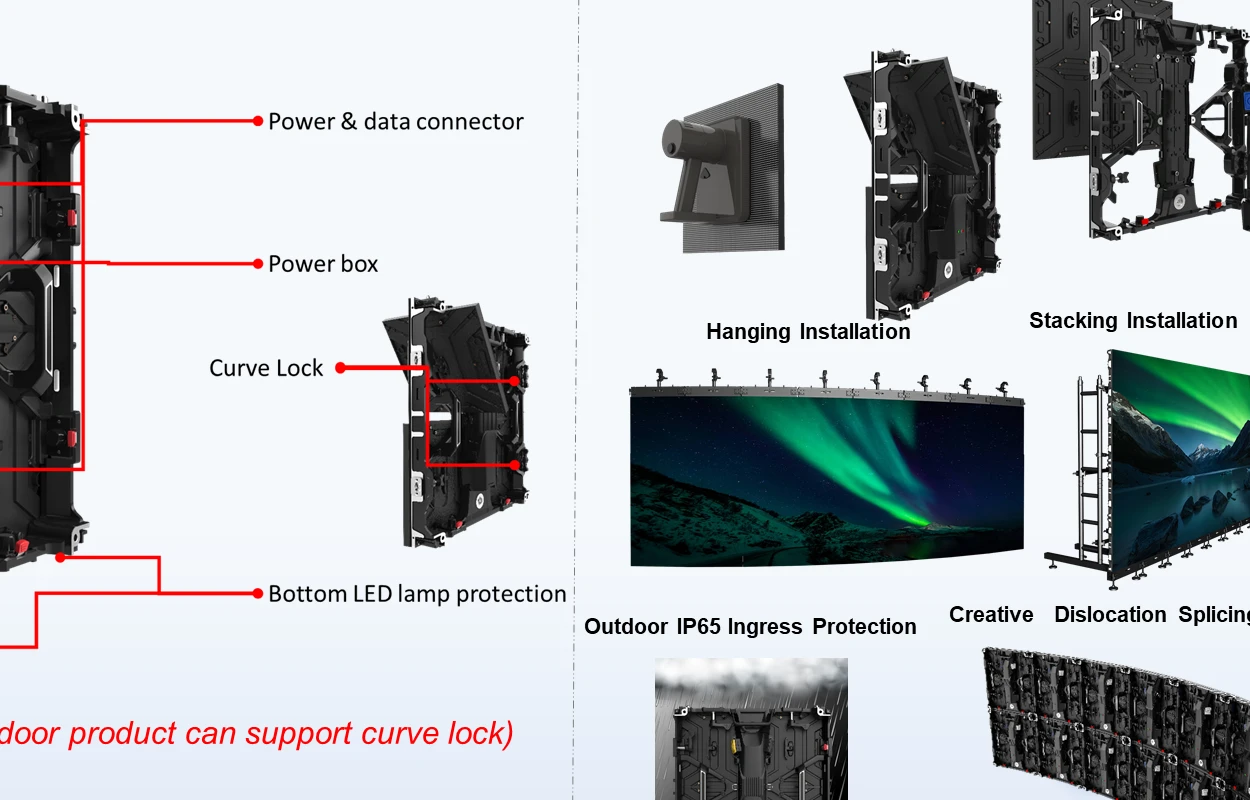

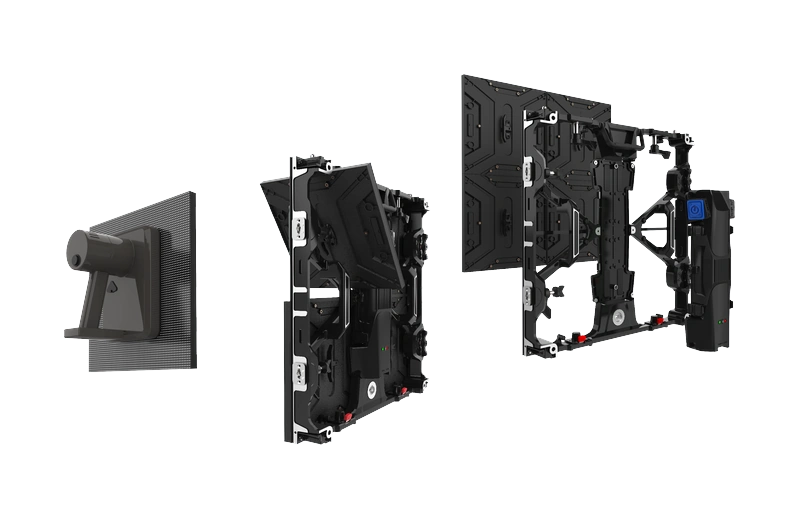

Fast-Lock Rental and Staging LED Display

Touring & Live Staging

Fast-Lock Rental & Staging LED

Ultra-lightweight die-cast panels with ergonomic rapid-lock levers, ±10° angle-adjustable curve mechanisms, creative dislocation stacking, and certified multi-tier hanging truss bars and ground support bases for concert touring and conferences.

Indoor Pitches: P1.9, P2.6, P3.9 mm (800 nits • 3840Hz Refresh)
Outdoor Pitches: P2.9, P3.9, P4.8 mm (5,000 nits • IP65 Weatherproof)
Rigging & Support: Certified Fly-Bar Hanging & Ground Stacking Base
Fast Swapping: Tool-Free Magnetic Modules & Integrated Power Core
Creative Shapes: Staggered Dislocation Splicing & Curved Locks
Primary Use: Live Concerts, Global Summits, Brand Activations, Exhibitions

Inquire Rental Series →

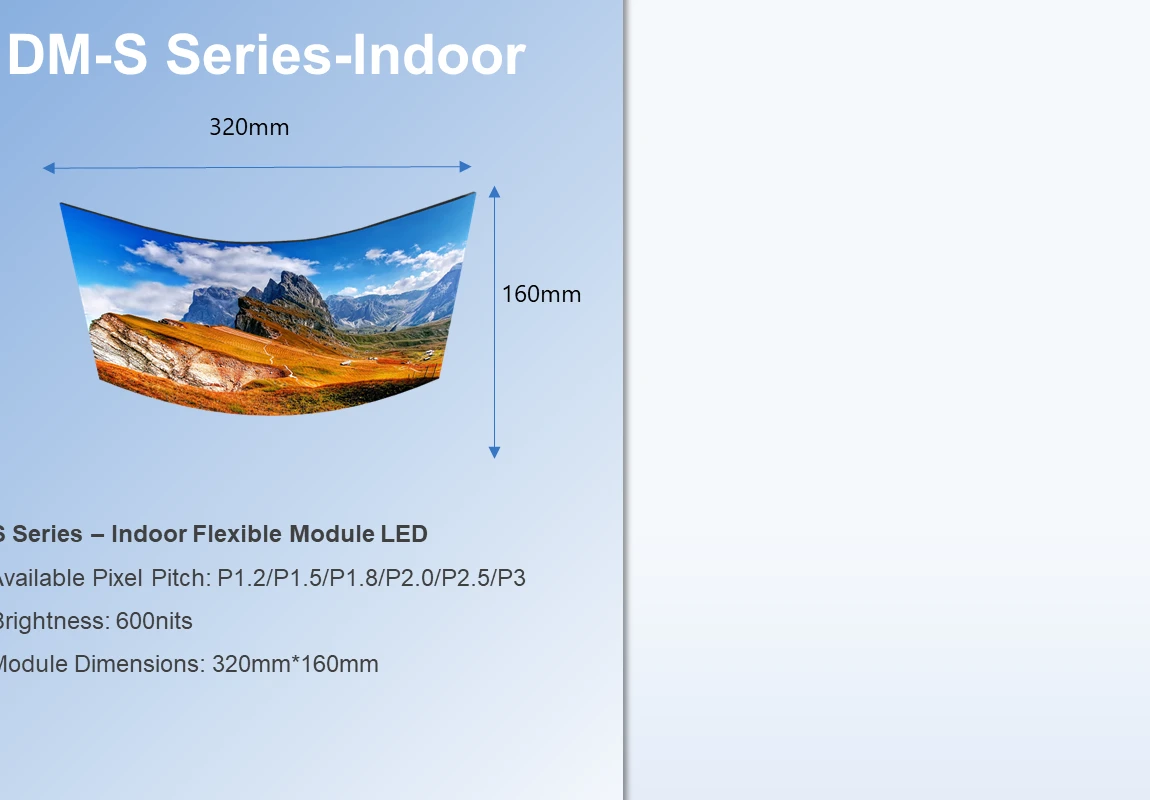

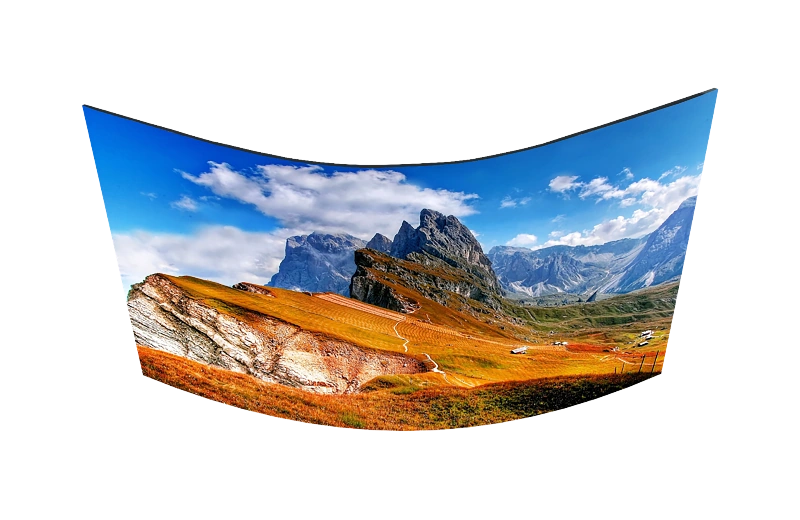

Flexible Architectural Curved LED Display Module

Curved Architecture

Flexible Architectural & Creative Modules

Soft magnetic silicone PCB modules designed for organic wave ceilings, cylindrical columns, ribbon walls, and concave/convex contours without visible faceted seams, utilizing standard 320×160mm dimensions.

Flexible Pitches: P1.2, P1.5, P1.8, P2.0, P2.5, P3.0 mm (600 nits)
Module Dimensions: Standard 320 × 160 mm Flexible Magnetic Matrix
Standard Modules: Indoor P1.2–P2.5 & Outdoor P2.5–P10 (192×192 / 320×160)
Bend Flexibility: Up to 360° Continuous Cylinders & Organic S-Curves
Magnetic Assembly: Neodymium Magnets for Direct-to-Steel Installation
Primary Use: Museum Sculptures, Retail Ribbon Displays, Pillar Wraps

Inquire Flexible Modules →

Engineering Innovations

Structural & Optical Engineering Highlights

Advanced mechanical chassis design, Flip-Chip encapsulation, and architectural corner capabilities.

Optical Integrity

Flip-Chip COB Technology & 16:9 Native UHD Mapping

Conventional SMD LEDs expose solder legs to physical wear and moisture. Our Flip-Chip Chip-on-Board (COB) architecture bonds the semiconductor die directly to the substrate, covered by a micro-optical protective resin shield. This delivers complete impact resistance, dust immunity, anti-static safety, and uniform pitch-black surface contrast.

✓ True 16:9 Golden Ratio: Standard 600×337.5mm panels tile naturally into native 1080p, 4K, and 8K canvases without pixel loss or aspect ratio stretching.
✓ 10,000:1 Dynamic Contrast: Ultra-black resin coating eliminates optical glare and reflection under intense control room downlights.
✓ Full Front Vacuum Magnetic Service: Any individual module extracts from the front face in under 5 seconds with zero disturbance to surrounding cabinets.

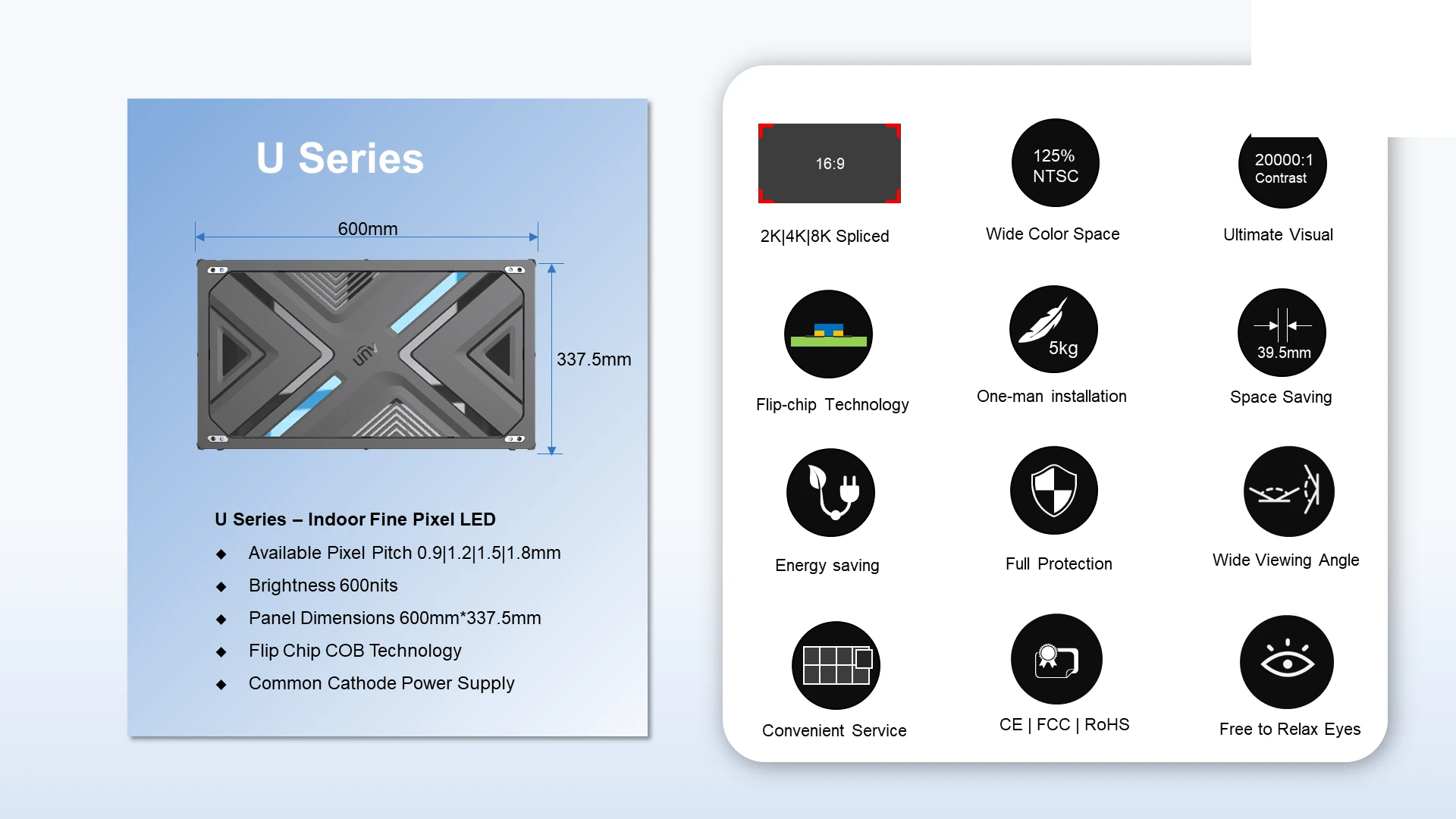

Flip-Chip COB Fine Pitch LED Panel with 16:9 Golden Ratio

Architectural Form

Modular Cabinet Heights & 90° Corner Chamfering

Architectural walls rarely match rigid display dimensions. Our indoor fixed series offers three interchangeable cabinet heights (500mm, 750mm, and 1000mm × 500mm width) that interlock seamlessly within the same array, giving architects freedom to fill exact floor-to-ceiling niches.

✓ 45° Chamfered Corner Cutting: Cabinets feature precision bevelled edges that join to form continuous, seamless 90-degree external corners with zero dark gaps.
✓ Four-Sided Pillar Encasements: Encase structural load-bearing building pillars with 360-degree continuous digital video canvases.
✓ Integrated Power & Data Hub: Centralized internal power boxes with single-cable interconnects eliminate visible wiring clutter.

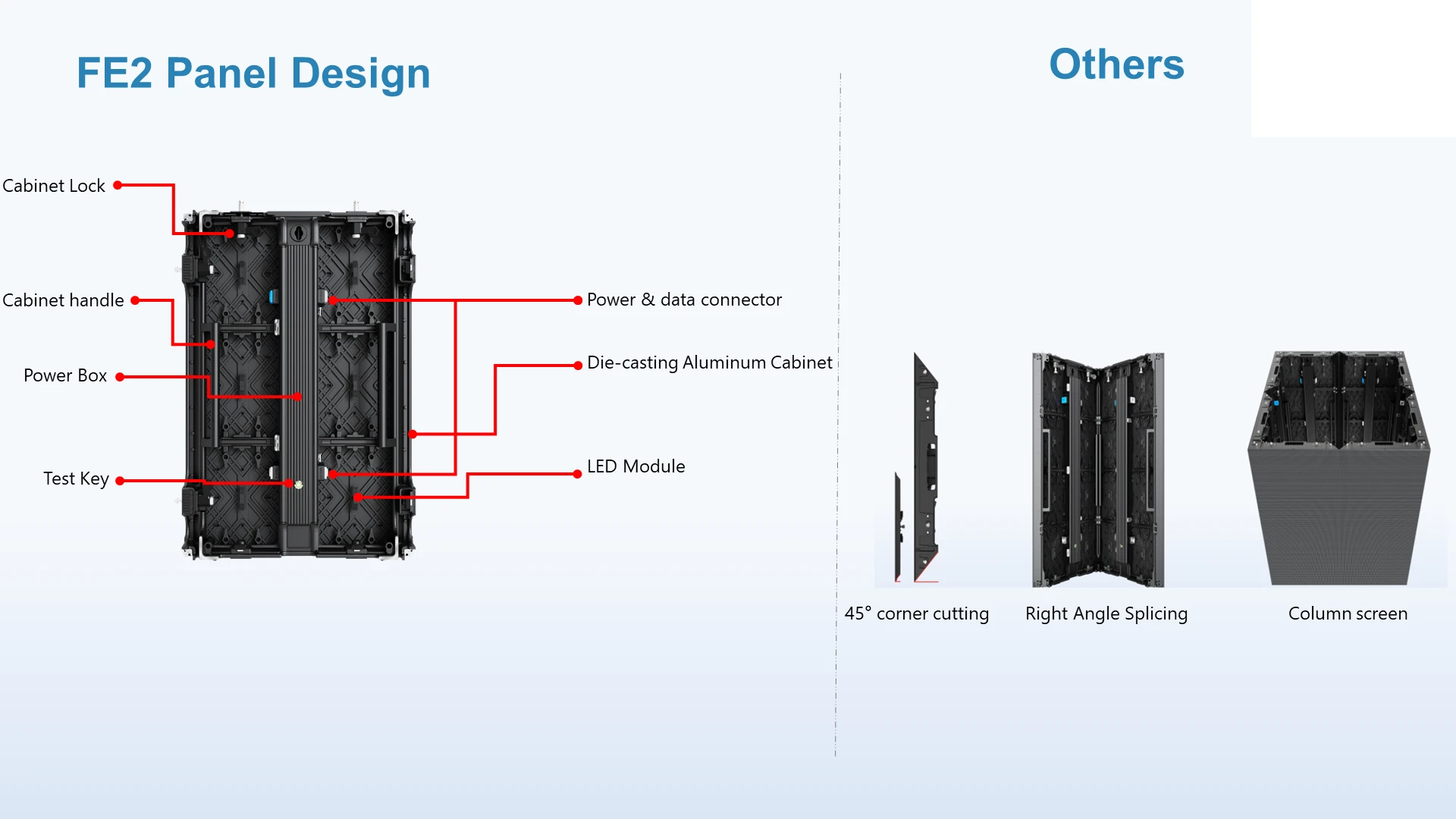

Right angle 90 degree splicing and modular height column display

Creative Geometry

Creative Dislocation Splicing & Half-Width Formats

Break away from standard rectangular grids. With specialized 300×337.5mm half-width cabinets and staggered interlocking latches, displays can be arranged in creative staggered brickwork formations, artistic geometric steps, and ribbon-like shapes.

✓ Staggered Dislocation: Cabinets interlock securely even when offset horizontally by 50%, enabling dynamic architectural sculptures.
✓ Corner-Cut Cabinets: Pre-machined 45-degree angle frames allow wraps around sharp corners without bespoke sheet metal brackets.
✓ Die-Cast Aluminum Rigidity: CNC micro-milled tolerances (±0.05mm) guarantee laser-flat planarity across every creative seam.

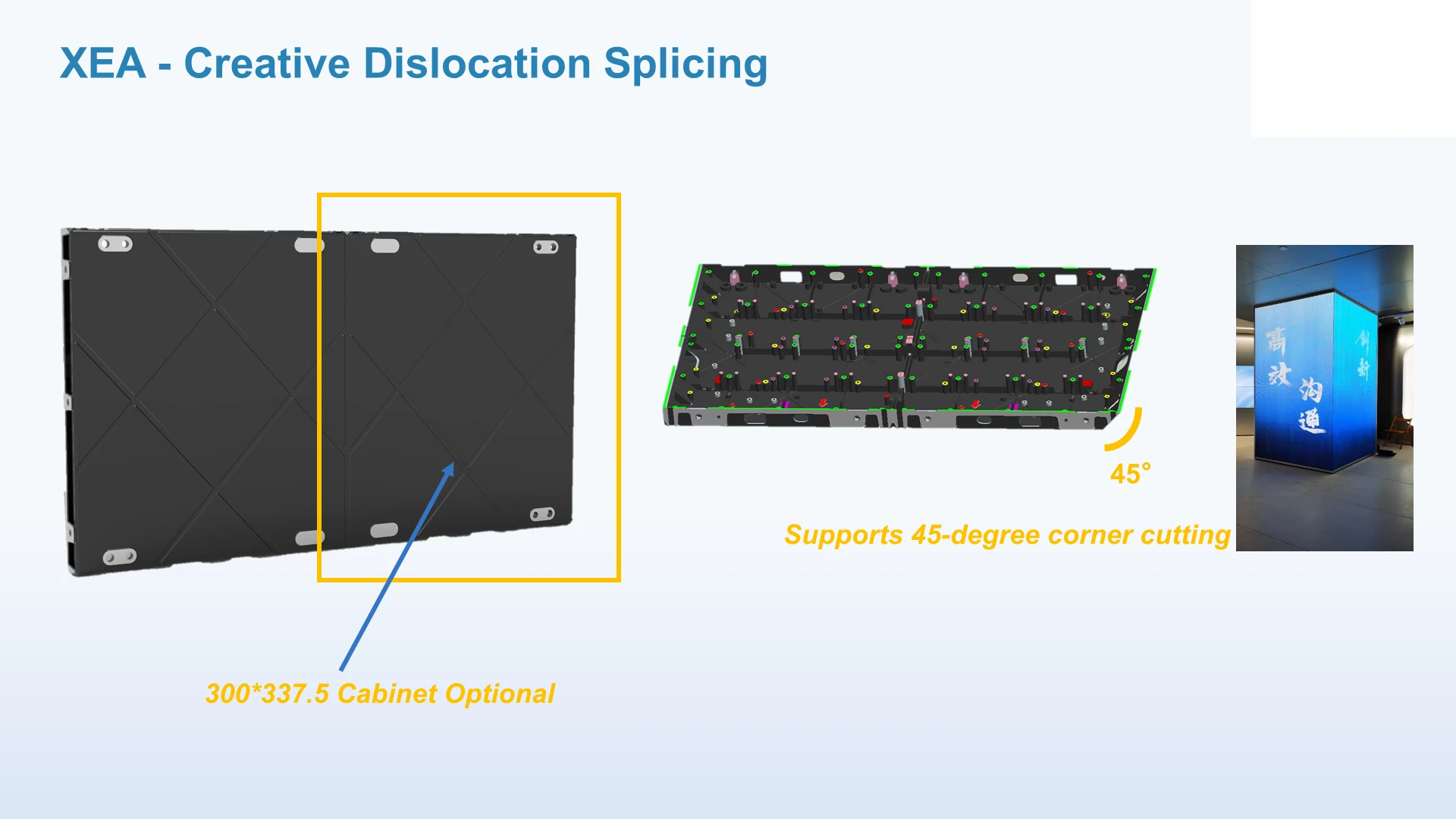

Creative dislocation splicing and half width cabinet options

Harsh Environment Reliability

10,000-Nit Outdoor Reliability & Wide-Voltage Stability

Outdoor digital advertising in the Middle East demands resistance to ambient temperatures exceeding 50°C, fine airborne dust, and high solar UV degradation. Our outdoor fixed series incorporates military-grade wide-voltage power supplies (90V–264V AC) and direct thermal dissipation ribs.

✓ Up to 10,000 Nits Luminance: Delivers vibrant, saturated commercial advertising content directly into harsh midday desert sunlight.
✓ IP65 Weatherproof Sealing: Fully potted silicone module backs protect against torrential storm water and fine sand penetration.
✓ 360° Smooth Arc Splicing: Engineered cabinet corner bevels allow modular creation of convex and concave curved building wraps.

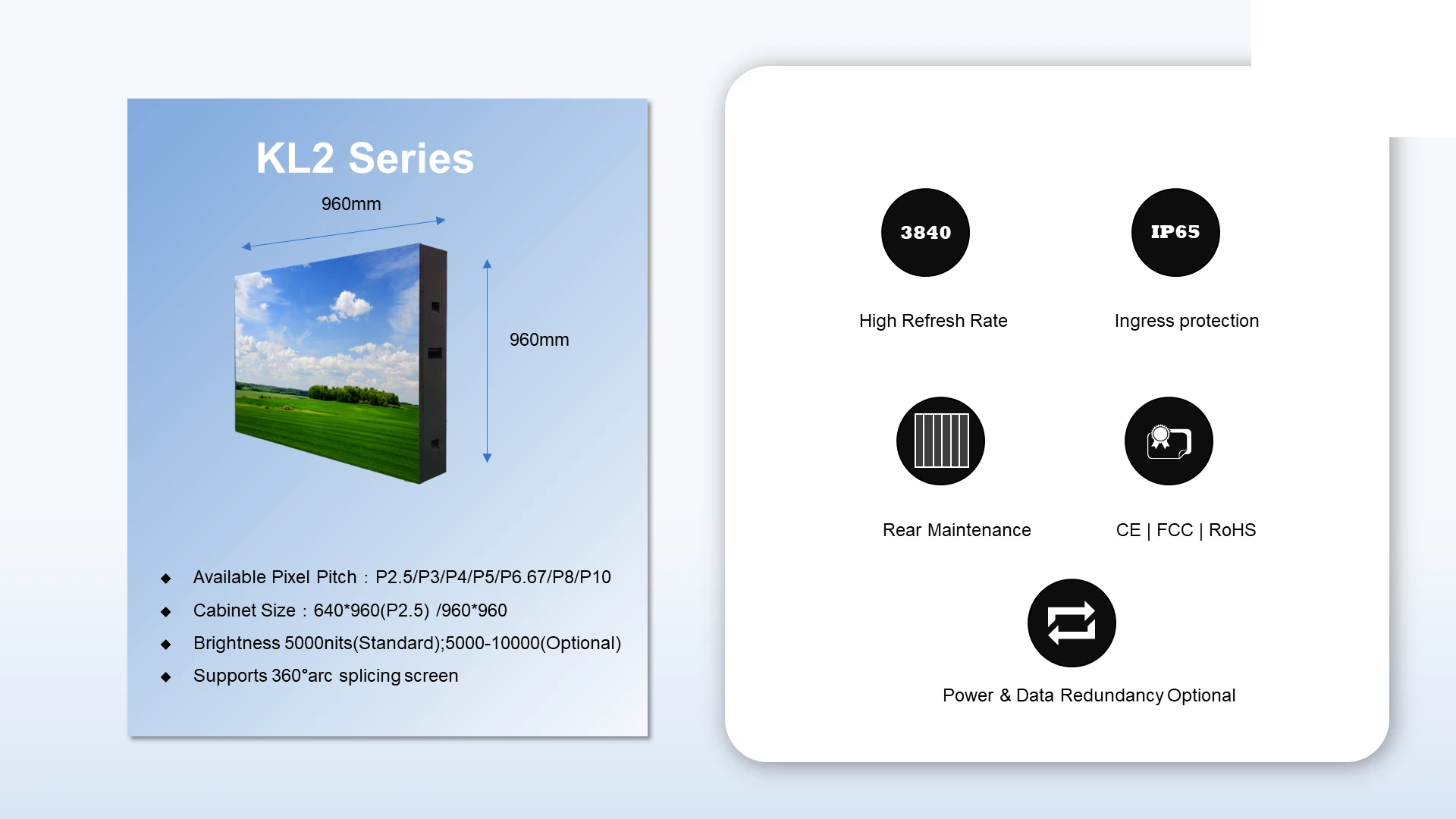

High luminance outdoor LED display with wide voltage power supply

Engineering Specifications

Commercial Direct-View LED Specification Matrix

Comprehensive physical, optical, electrical, and structural parameters across all six direct-view LED display families.

Family & Series	Available Pixel Pitches	Standard Cabinet Dimensions	Calibrated Luminance	Maintenance & Ingress	Key Engineering Applications
Ultra-Fine Pitch Indoor (COB)	P0.9, P1.2, P1.5, P1.8 mm	600 × 337.5 mm (16:9 Golden Ratio)	600 nits (10,000:1 Contrast)	100% Front Vacuum Magnetic • IP30	Mission-Critical Defense Centers, SOCs, Executive C-Suite
Modular-Height Indoor Fixed	P1.5, P1.9, P2.6, P2.9, P3.9 mm	500 × 500 / 750 / 1000 mm	800 nits (3,840Hz Refresh)	Front / Rear Service • IP30	Architectural Pillars, 90° Corners, Retail Showrooms, Lobbies
All-in-One Integrated Displays	P1.2, P1.5, P1.8 mm	108", 135", 162" Pre-Assembled 16:9	600 nits (Flip-Chip COB)	Front Magnetic • <35mm Depth	Boardrooms, Video Conferencing, High-Education Lecture Halls
High-Luminance Outdoor Fixed	P2.5, P3, P4, P5, P5.9, P6.67, P8, P10	640×640mm, 640×960mm, 960×960mm	5,000 – 10,000 nits (Sunlight Readable)	Front & Rear Dual Access • IP65/IP66	DOOH Highway Billboards, Stadium Scoreboards, Building Facades
Fast-Lock Rental & Staging	Indoor P1.9/2.6/3.9 • Outdoor P2.9/3.9/4.8	500 × 500 mm / 500 × 1000 mm	800 nits (In) / 5,000 nits (Out)	Tool-Free Fast Lock • IP65 (Out)	Touring Concerts, Trade Show Pavilions, Stage Backdrops
Flexible Architectural Modules	P1.2, P1.5, P1.8, P2.0, P2.5, P3.0 mm	320 × 160 mm Flexible Magnetic Matrix	600 nits (Bendable PCB)	Front Magnetic • Up to 360° Cylinders	Curved Columns, Wave Ceilings, Custom Museum Sculptures
