Signal & Control Infrastructure

Display Controllers, Hardware Decoders & Video Matrix

Mission-critical hardware signal processing infrastructure engineered for 24/7 emergency operations centers, security monitoring command hubs, and enterprise multi-room visualization. Spanning high-capacity IP video decoders (up to 288× 1080P / 72× 4K streams), pure FPGA modular video wall controllers (2U/3U chassis with hot-swappable HDMI, DP, and direct LED sending cards), all-in-one converged video management platforms, and 10.1-inch tactile network control keyboards with 4-axis precision vector joysticks.

Request Controller Architecture Quote Command & Control Blueprint Control Room Planning Guide

Commercial Display Controllers, Hardware Decoders and Video Matrix Infrastructure

System Portfolio

Four Converged Hardware Processing Architectures

Industrial signal processing tiers custom-engineered to decode massive IP camera streams, cross-switch multi-4K workstation feeds, and drive complex LED/LCD display canvases with sub-frame latency.

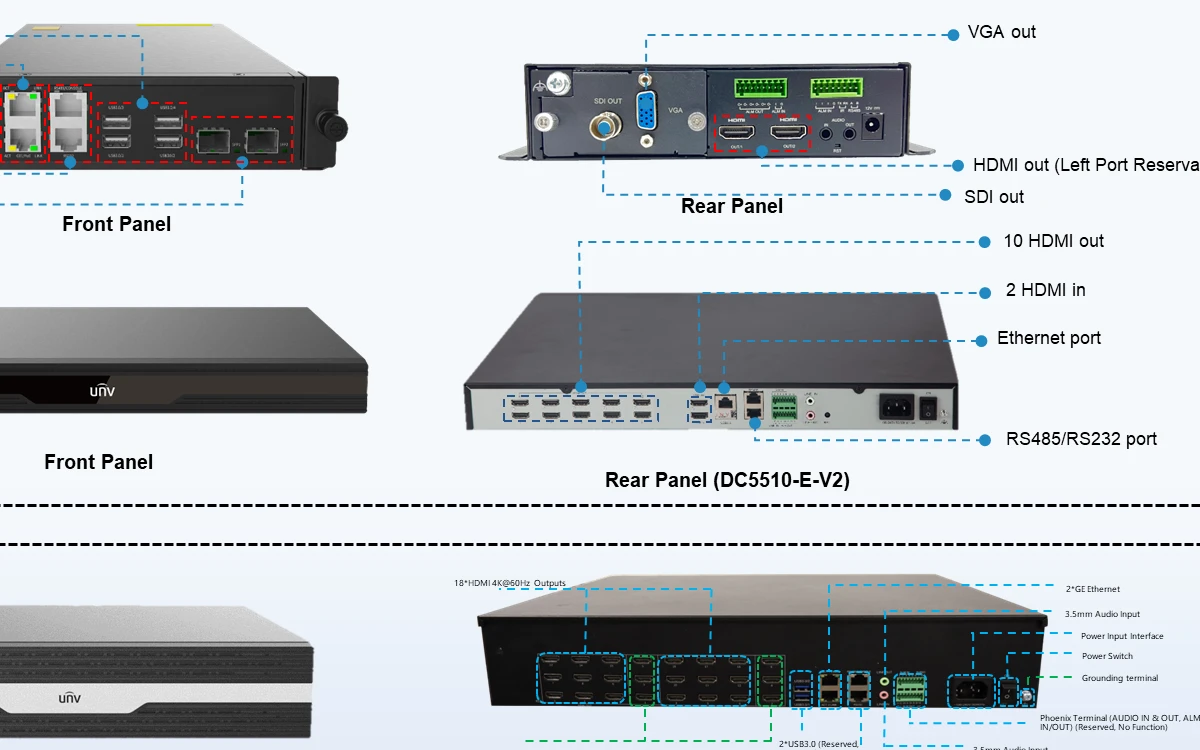

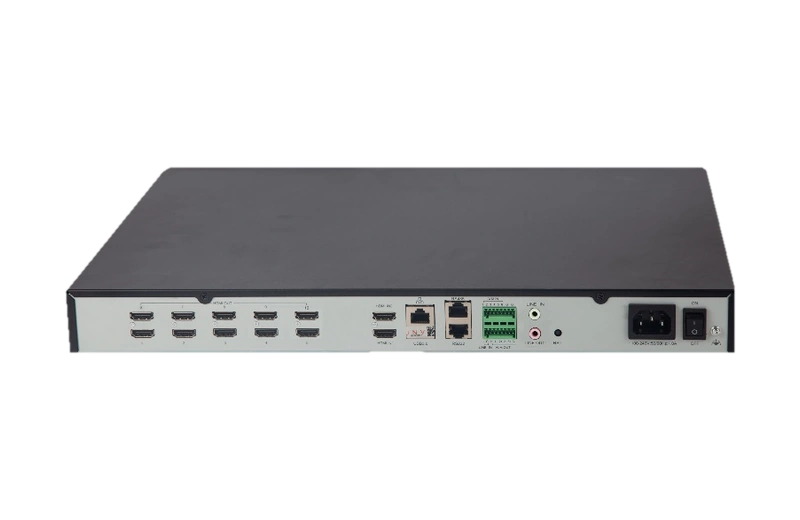

IP Surveillance Decoding

High-Capacity Hardware IP Decoders

Dedicated rackmount FPGA decoding engines capable of processing up to 288 channels of 1080P@30 or 72 channels of 4K@30 IP video streams simultaneously without frame drops, operating system crashes, or PC maintenance overhead.

Decoding Throughput: Up to 288 × 1080P@30 / 72 × 4K@30 IP Streams
Video Formats: H.265, H.264, MJPEG, ONVIF Profile S/G/T & RTSP
Output Interfaces: Up to 18 HDMI Ports (4K / 1080P Full HD)
Audio & Voice: Multi-channel audio de-embedding & two-way voice intercom
Chassis Architecture: 1U / 2U / 3U Industrial Rackmount with Redundant Power
Primary Use: City-Wide Surveillance, Traffic Management, Safe City Operations

Inquire Hardware Decoders →

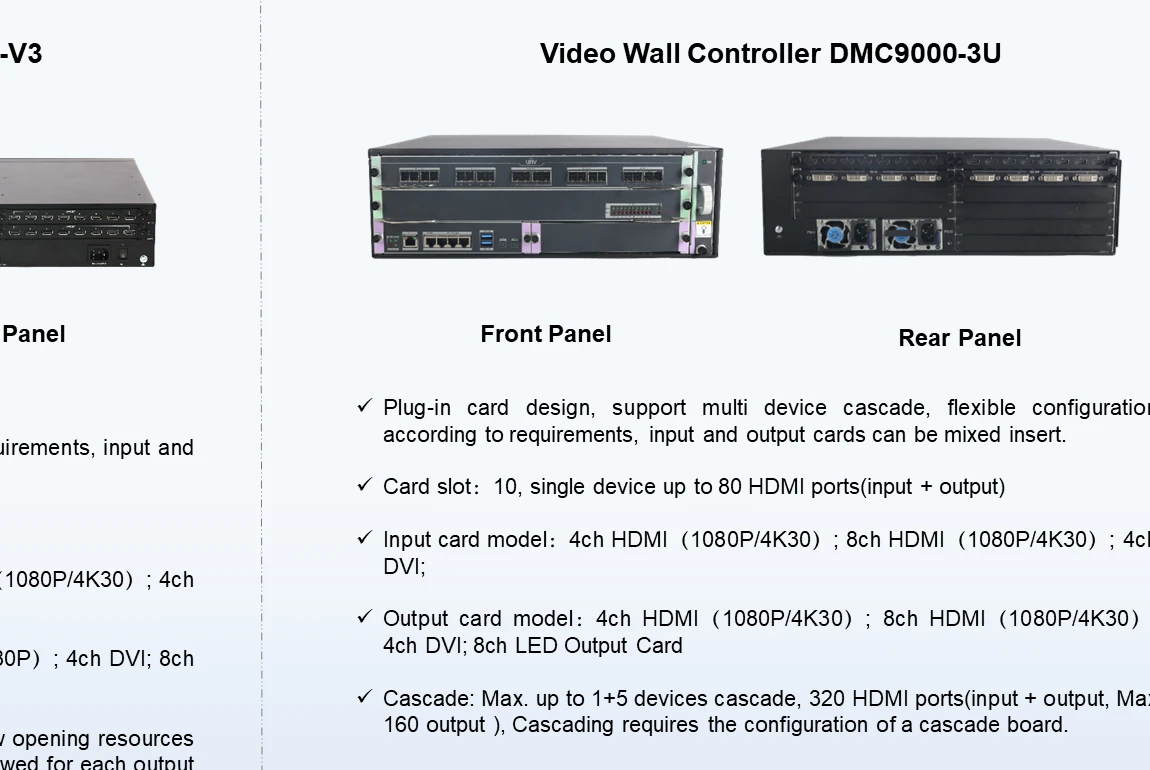

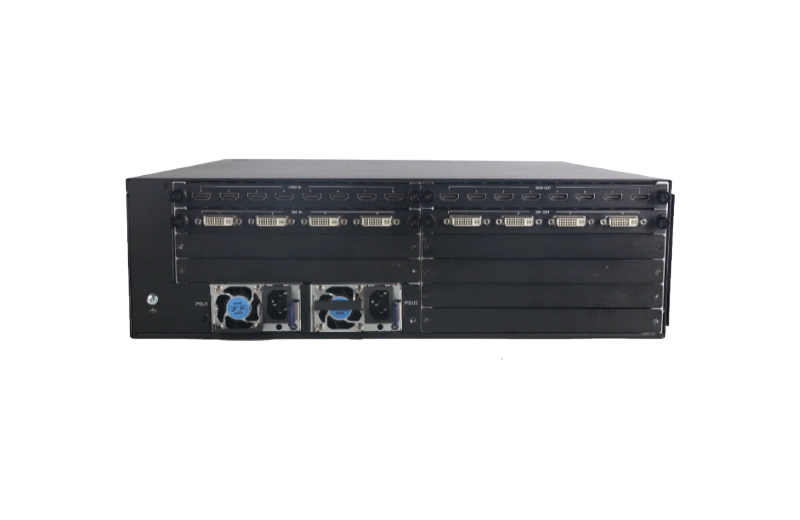

Modular FPGA Video Wall Controller 2U and 3U Chassis

Sub-Frame Matrix Routing

Modular FPGA Video Wall Controllers (2U & 3U)

Pure hardware cross-point FPGA architecture offering sub-frame latency (<16ms), hot-swappable I/O card slots, mixed input/output insertion, and multi-device chassis cascading for driving massive mission-critical display arrays.

Chassis Formats: 2U (4 Modular Card Slots) & 3U (8 Modular Card Slots)
Card Modularity: Hot-swappable 4K60 HDMI/DP In, 8-Port HDMI Out, Direct LED RJ45 Out
Direct LED Drive: 8-Port Gigabit LED Output Cards drive LED cabinets directly without sending boxes
Canvas Windowing: Free Roaming, Arbitrary Scaling, PIP & Multi-Screen Splicing
Architecture: 100% Pure FPGA Hardware (Zero OS Crash • Sub-16ms Latency)
Primary Use: Defense Command Rooms, Utility SCADA Centers, Corporate Briefing Rooms

Inquire Modular Controllers →

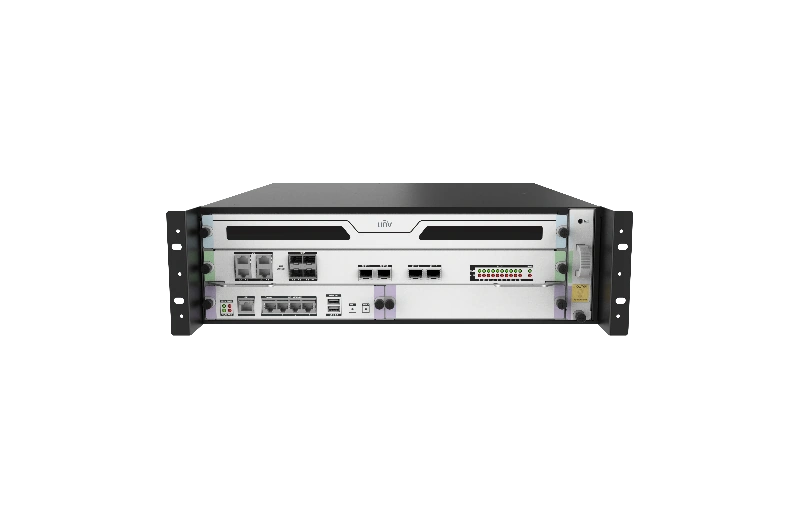

Converged Video Management Platform A9010

All-in-One Convergence

Converged Video Management Platforms

Unifies VMS device management, recording retrieval, stream distribution, and video wall display matrix processing into a single integrated enterprise appliance, eliminating multiple separate server racks.

Converged Stack: VMS Server + IP Stream Decoder + Video Wall Splicer in 1 Chassis
Mixed Canvases: Simultaneously manages tiled LCD video walls and direct-view LED canvases
Modular Card Slots: Dual-port 4K60 input cards, 4/8-port HDMI output & 8-port LED output cards
Enterprise Cascading: Multi-chassis network cascading for multi-room emergency operations
Carrier Redundancy: Dual hot-swappable redundant power supplies & enterprise MTBF
Primary Use: Airport Operations Centers, Smart Campus Hubs, Energy Grid SCADA

Inquire Converged Platforms →

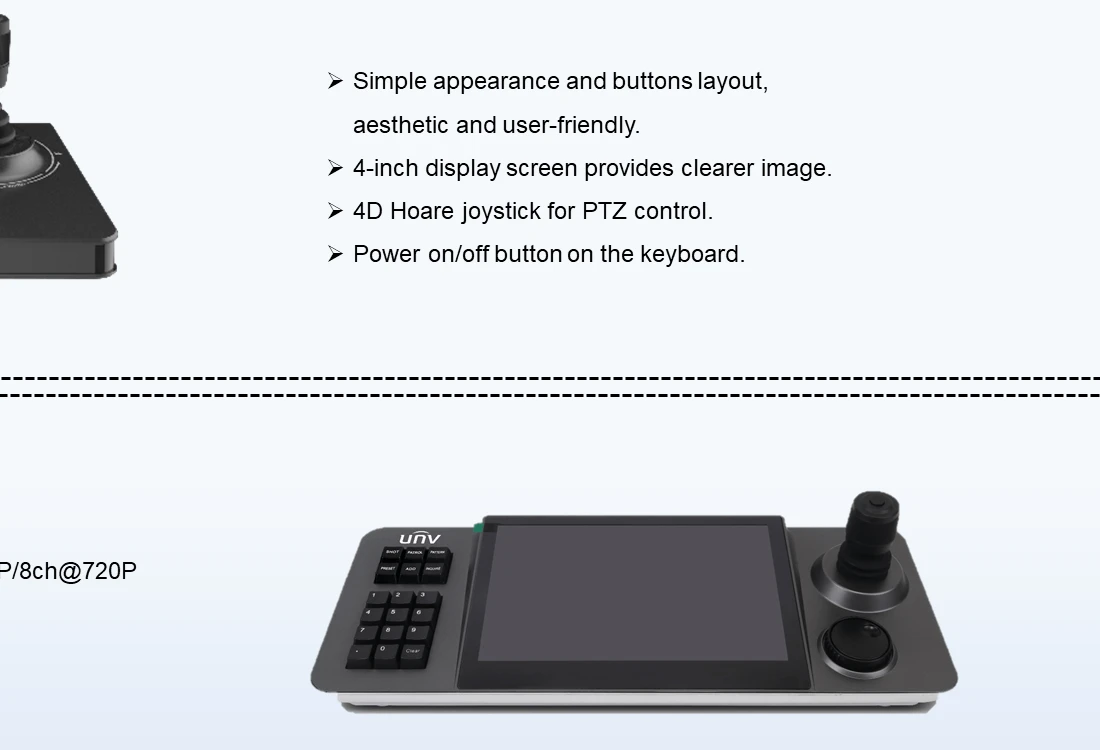

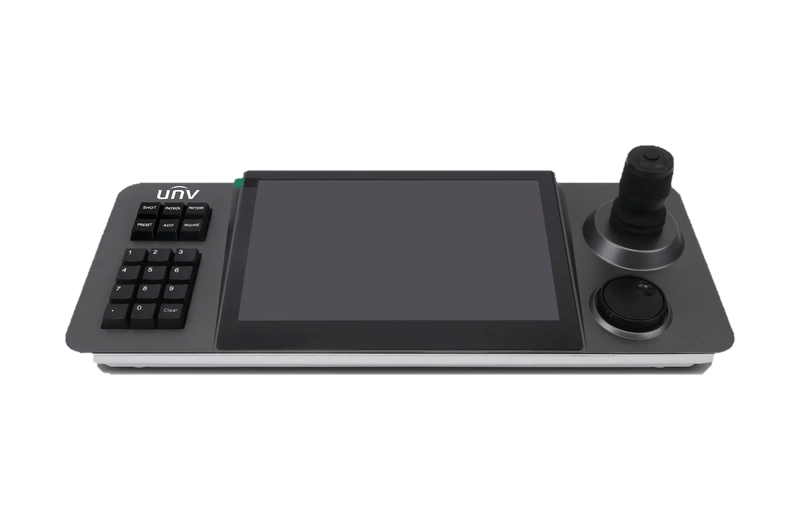

10.1 Inch Touchscreen Network Control Keyboard with 4D Joystick

Tactile Operator Console

10.1″ Touchscreen Network Control Keyboard

Ergonomic operator console featuring an integrated 10.1-inch capacitive touch screen with local 4K/1080P stream decoding, 4-axis precision vector joystick, and instant one-touch video wall preset scene recall.

Touch Screen: 10.1" Capacitive Touch LCD with Live Video Stream Preview
Local Decoding: 1ch @ 4K / 4ch @ 1080P / 8ch @ 720P on keyboard screen
PTZ Joystick: 4-Axis Hall-Effect Vector Joystick for variable speed camera tracking
Device Access: Direct IP control of up to 500 IPC / NVR / Decoder devices
Wall Preset Control: One-touch preset scene triggers, camera touring, and matrix routing
Primary Use: Security Dispatch Consoles, Police Control Rooms, Crisis Management

Inquire Control Keyboard →

Canvas Control

Five Core Splicing, Windowing & Roaming Capabilities

Total visual flexibility over multi-screen matrices without boundary restrictions or raster tearing.

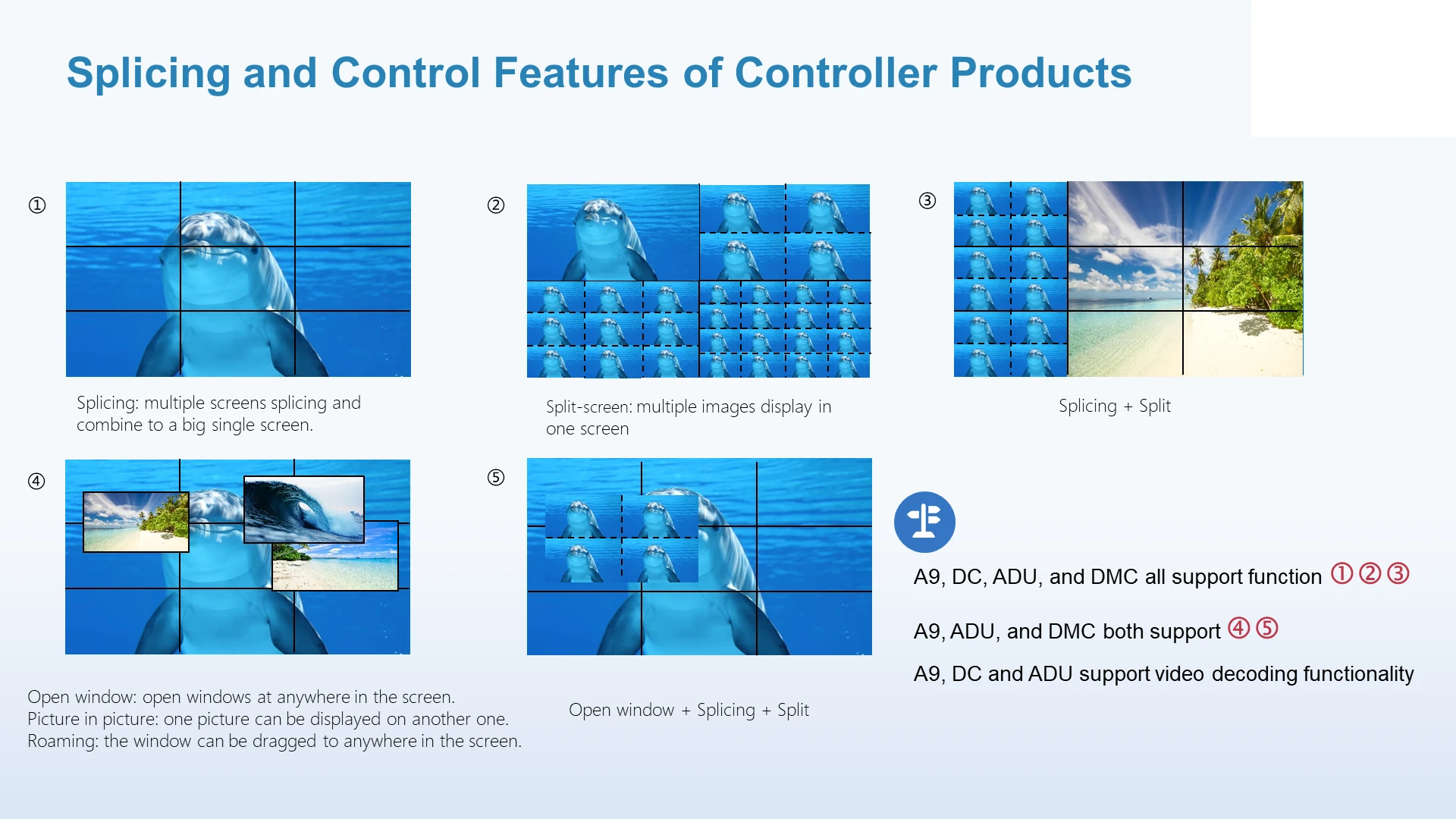

Five Splicing and Control Capabilities: Splicing, Split-Screen, Open Window, PIP, Roaming

Large Screen Splicing

1. Multi-Screen Splicing

Combine multiple physical LCD panels or LED cabinets into a single ultra-high-resolution unified canvas. Delivers seamless pixel-to-pixel presentation of GIS maps, SCADA schematics, and enterprise BI dashboards.

Grid Multi-View

2. Multi-Split Screen

Divide individual screens or tiled matrix clusters into 1, 4, 9, 16, 25, 36, or 64 camera splits. Operators monitor dozens of live CCTV cameras simultaneously on a single workstation display.

Free Window Placement

3. Arbitrary Open Windowing

Open visual windows anywhere across the entire video wall canvas at any position, dimension, or aspect ratio. Completely independent of physical screen borders, panel bezels, or chassis limits.

Priority Overlay

4. Picture-in-Picture (PIP)

Layer high-priority emergency or surveillance camera streams above background operational maps. Operators keep situational awareness while tracking critical live incidents in floating windows.

Fluid Roaming

5. Cross-Screen Window Roaming

Seamlessly drag, float, and reposition any active video window across physical display bezel borders in real-time with zero image stutter, tearing, or coordinate offset.

Enterprise Expansion

6. Multi-Device Cascading

Interconnect multiple controller chassis across high-speed optical backplanes to drive massive 64+, 128+, or 256+ screen multi-room command centers with synchronized, frame-accurate rendering.

Hardware Modularity

Hot-Swappable Card Architecture & Direct LED Gigabit Output

Traditional LED video wall systems require separate external video sending boxes, complex DVI/HDMI patch cables, and bulky equipment racks. Our modular video wall controllers revolutionize the signal chain by integrating direct Gigabit LED output cards into the central chassis.

✓ 8-Port Direct LED Output Card: Drives LED display cabinets directly via standard Cat6 RJ45 network cables, eliminating external sending boxes and saving thousands in hardware costs.
✓ 4K60 HDMI / DP Input Cards: Dual-channel 4K@60Hz inputs accept high-frame-rate workstation desktops, 3D simulation engines, and ultra-HD media servers without frame dropping.
✓ 8-Port HDMI Output Card: High-density HDMI card driving up to 8 independent 1080p displays or 2 channels of 4K@30Hz video per slot.
✓ Pure FPGA Hardware Matrix: Dedicated cross-point FPGA chips handle all video scaling and windowing in hardware, guaranteeing zero operating system crashes.

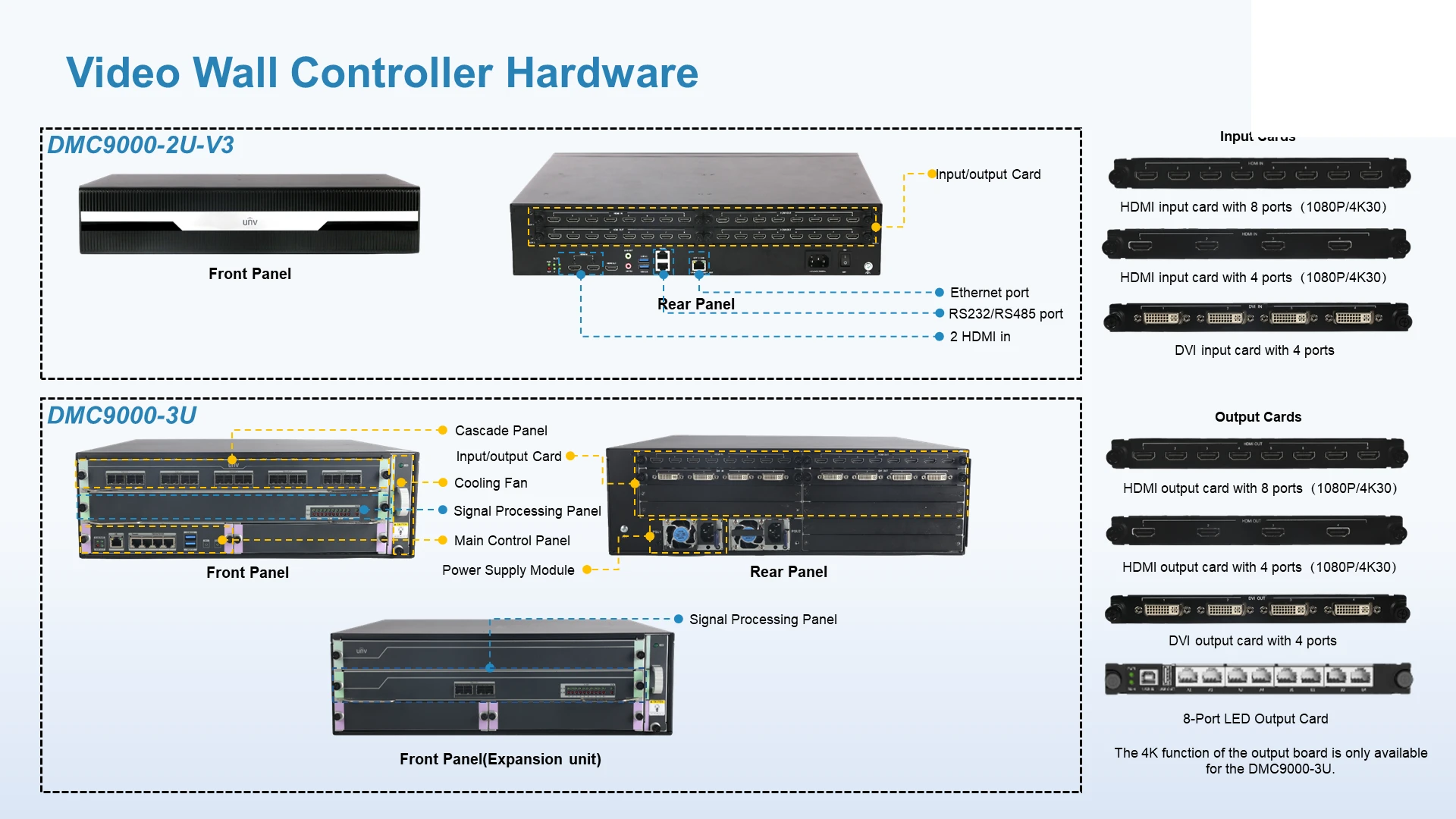

Modular video wall controller chassis with hot-swappable HDMI, DP, and direct LED output cards

Engineering Specifications

Display Controller & Hardware Decoder Specification Matrix

Comprehensive processing throughput, channel capacity, and mechanical parameters for control room signal infrastructure.

Hardware Platform	Channel Capacity	Decoding Throughput	Display Wall Splicing	Card Modularity	Chassis & Redundancy
High-Capacity IP Hardware Decoder	Up to 18 HDMI Outputs	288CH 1080P@30 / 72CH 4K@30	Multi-screen splicing • 1/4/9/16 splits	Fixed high-density rear I/O	1U / 2U / 3U • Dual Redundant PSU
Modular Video Wall Controller (2U)	4 Card Slots (Up to 16 Out)	FPGA Cross-Point Matrix	Free Roaming, PIP, Scaling, Splicing	Hot-Swap 4K60 In, HDMI Out, LED Out	2U 19" Rackmount • Redundant Fan/Power
Modular Video Wall Controller (3U)	8 Card Slots (Up to 32 Out)	FPGA Cross-Point Matrix	Free Roaming, PIP, Scaling, Splicing	Hot-Swap 4K60 In, HDMI Out, LED Out	3U 19" Rackmount • Redundant Fan/Power
Converged Video Management Platform	Modular IP & HDMI Slots	Converged VMS + Hardware Decoding	Hybrid Tiling: LCD Video Walls & Direct LED	Input Cards, HDMI Output & 8-Port LED	Enterprise Multi-Chassis Cascade • Hot-Swap
10.1" Touch Network Control Keyboard	500 IPC / NVR Devices	1ch @ 4K / 4ch @ 1080P / 8ch @ 720P	One-Touch Wall Presets & Splicing	10.1" Touch LCD + 4-Axis Vector Joystick	Ergonomic Desktop Console • Gigabit LAN
