Collaborative Visual Infrastructure

Commercial 4K Interactive Flat Panel Displays

Ultra-responsive 4K UHD collaboration displays (65″, 75″, 86″) engineered for executive enterprise boardrooms, smart higher education lecture halls, and corporate training facilities. Featuring optical zero-bonding technology, 40-point precision infrared touch (±1mm accuracy, ≤2ms response), Google EDLA enterprise certification, 8GB RAM + 128GB ROM high-speed computing, and front-facing multi-function connectivity.

Request Interactive Display Quote Boardroom Solution Blueprint Campus & Classroom Architecture
Commercial 4K Interactive Flat Panel Display
Purpose-Built Architectures

Two Dedicated Interactive Product Families

Custom-engineered display and computing stacks designed specifically for corporate executive governance and interactive academic pedagogy.

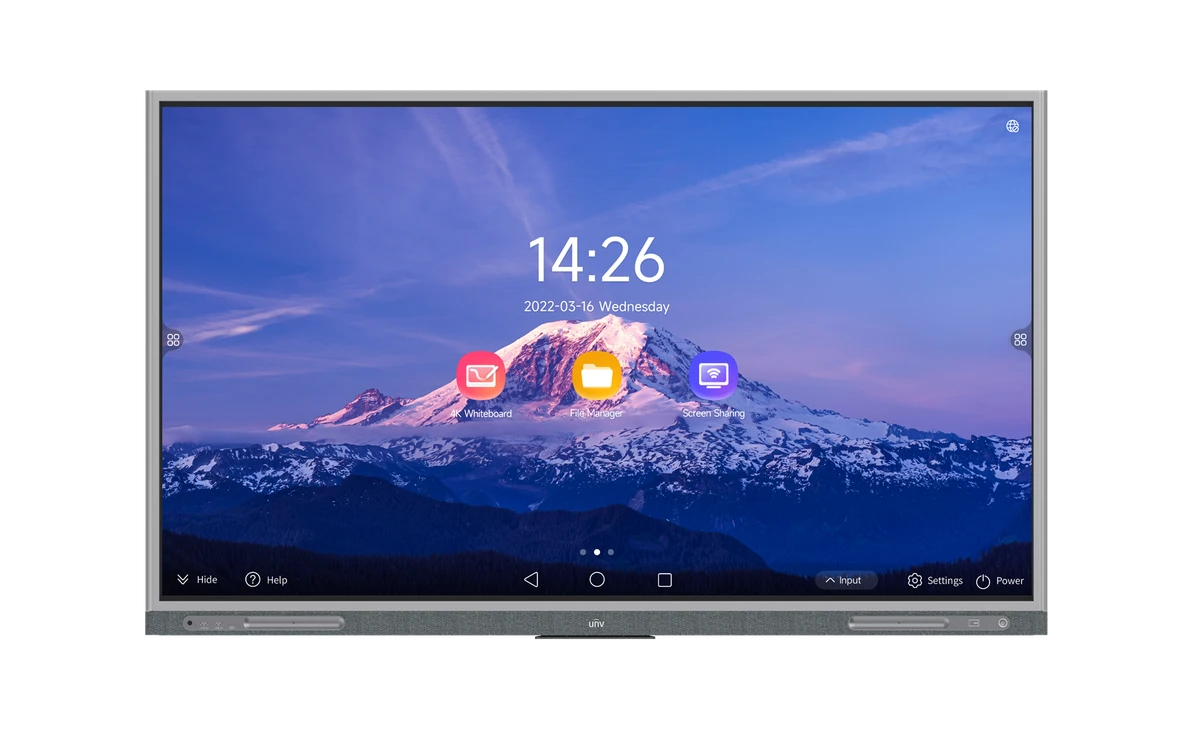

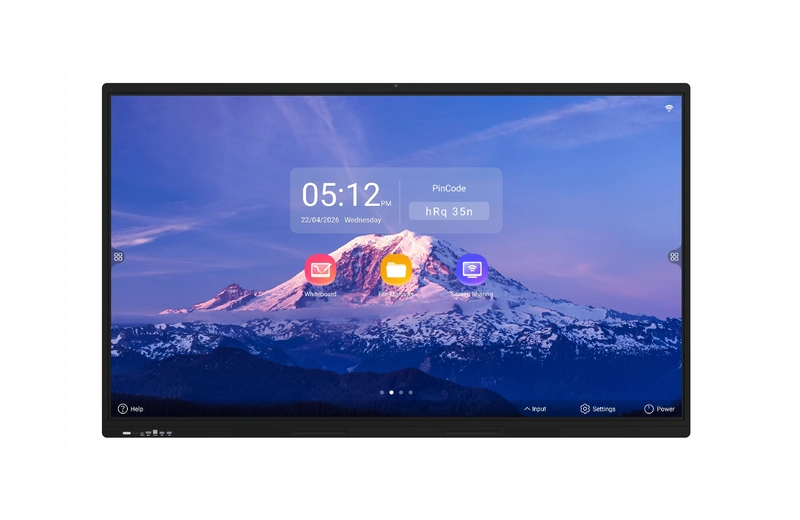

Enterprise Collaboration Interactive Display
C-Suite & Boardrooms

Enterprise Collaboration Series (Google EDLA)

Executive-grade 4K collaboration canvas with 93.6% screen-to-body ratio, optical zero-bonding glass, dual-channel six-array surround audio, Google EDLA enterprise certification, and seamless wireless BYOD multi-screen sharing.

  • Sizes: 65", 75", 86" 4K UHD (3840 × 2160, 350 nits, 1200:1 contrast)
  • Touch: 40-Point Infrared Touch Frame, ±1mm Accuracy, ≤2ms Response
  • Compute: High-Performance Octa-Core Engine, 8GB RAM + 128GB ROM
  • Operating System: Android 13.0 with Official Google EDLA Enterprise Certification
  • Note Sharing: One-click save, instant modification, and encrypted mobile QR export
  • Remote UC: Certified compatibility with Microsoft Teams, Zoom, Webex, and Google Meet
Inquire Enterprise Series →

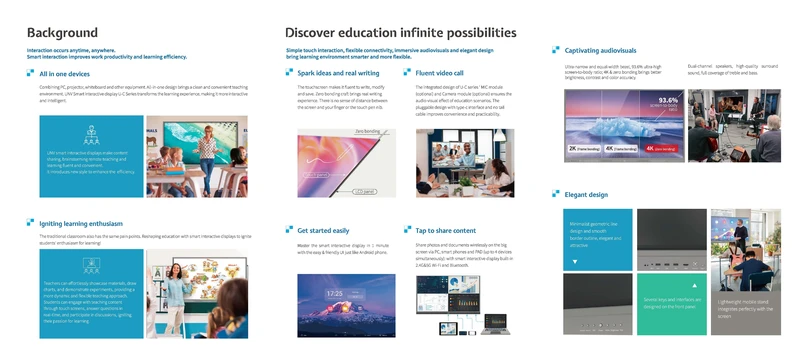

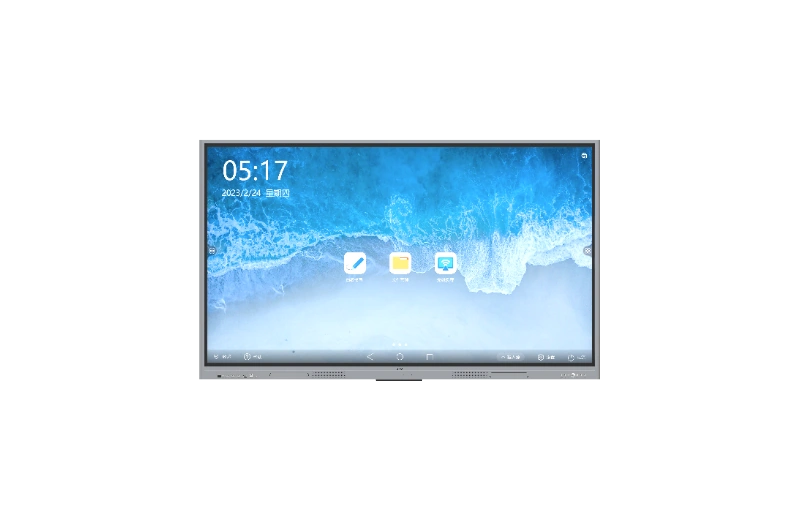

Education and Training Interactive Classroom Screen
Schools, Universities & Training

Education & Smart Campus Series (3-Tier Portfolio)

High-durability classroom interactive screens equipped with front-facing physical quick-keys, specialized mathematical & pedagogical whiteboard tools, instant QR student note sharing, and anti-glare 7H safety glass.

  • Portfolio Tiers: Flagship Academic (Google EDLA), Mainstream Classroom & Standard Teaching
  • Unified Display: 65", 75", 86" 4K UHD with 40-Point Touch (±1mm, ≤2ms)
  • Dynamic Tools: Integrated geometry ruler, set-square, protractor, compass & formula recognition
  • Front I/O: Physical quick-buttons, Type-C (65W PD Reverse Charging), HDMI, USB 3.0, Touch-USB
  • Hybrid Dual OS: Android 13/14 teaching interface + pluggable Windows 11 OPS PC module
  • Instant Note Transfer: Students scan whiteboard QR code directly to smartphones without USB
Inquire Education Series →
Executive Engineering

Enterprise Collaboration Series: 6 Signature Capabilities

Designed from the ground up to eliminate technical friction, streamline hybrid decision spaces, and elevate modern corporate boardrooms.

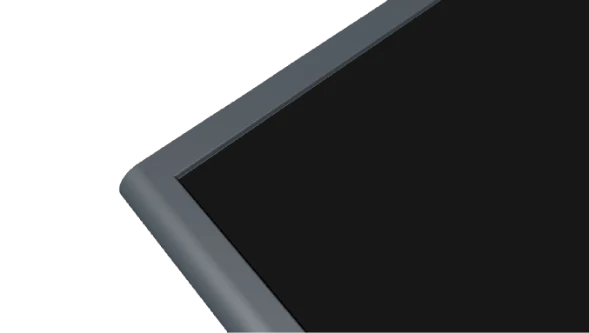

Metal frame architectural design
Industrial Design

Elegant Appearance

Concise and generous industrial design wrapped in an aerospace-grade anodized aluminum alloy frame, bringing executive elegance and structural rigidity to corporate boardroom walls.

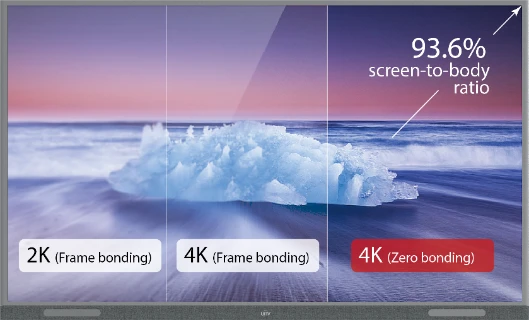

93.6% screen-to-body ratio and 6-array surround audio
Audiovisual Immersion

Captivating Audiovisuals

Expansive 93.6% screen-to-body ratio paired with integrated dual-channel six-array surround speakers, delivering crystal-clear boardroom speech intelligibility and room-filling acoustics.

Optical zero-bonding natural pen writing
Sub-Millimeter Touch

Real Writing Experience

Zero-gap optical bonding between the LCD panel and tempered surface glass eliminates air parallax and refraction, providing an exact, natural pen-on-paper writing feel with ±1mm accuracy.

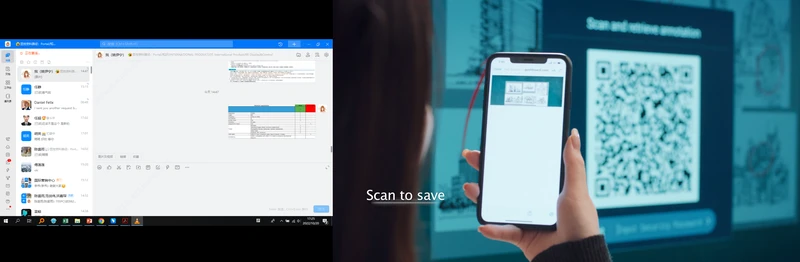

Instant QR scan note export
Frictionless Workflow

Easy to Save, Modify & Share

One click to save meeting minutes and modify notes anytime. Meeting attendees simply scan an encrypted on-screen QR code to download vector PDFs directly to smartphones without USB drives.

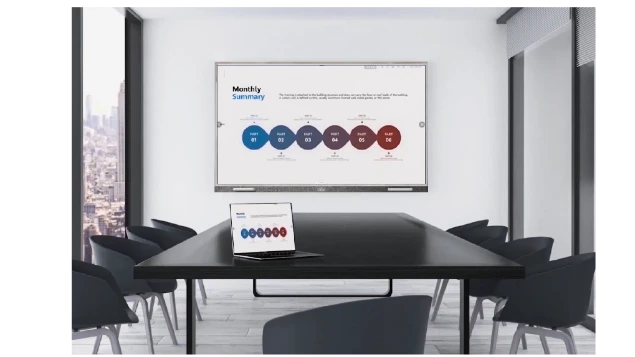

Remote video conference integration
Unified Communications

Facilitate Remote Conferences

Certified compatibility with Microsoft Teams, Zoom, Webex, and Google Meet; supports 4-split screen BYOD wireless presentation, two-way reverse touch, and hybrid brainstorming.

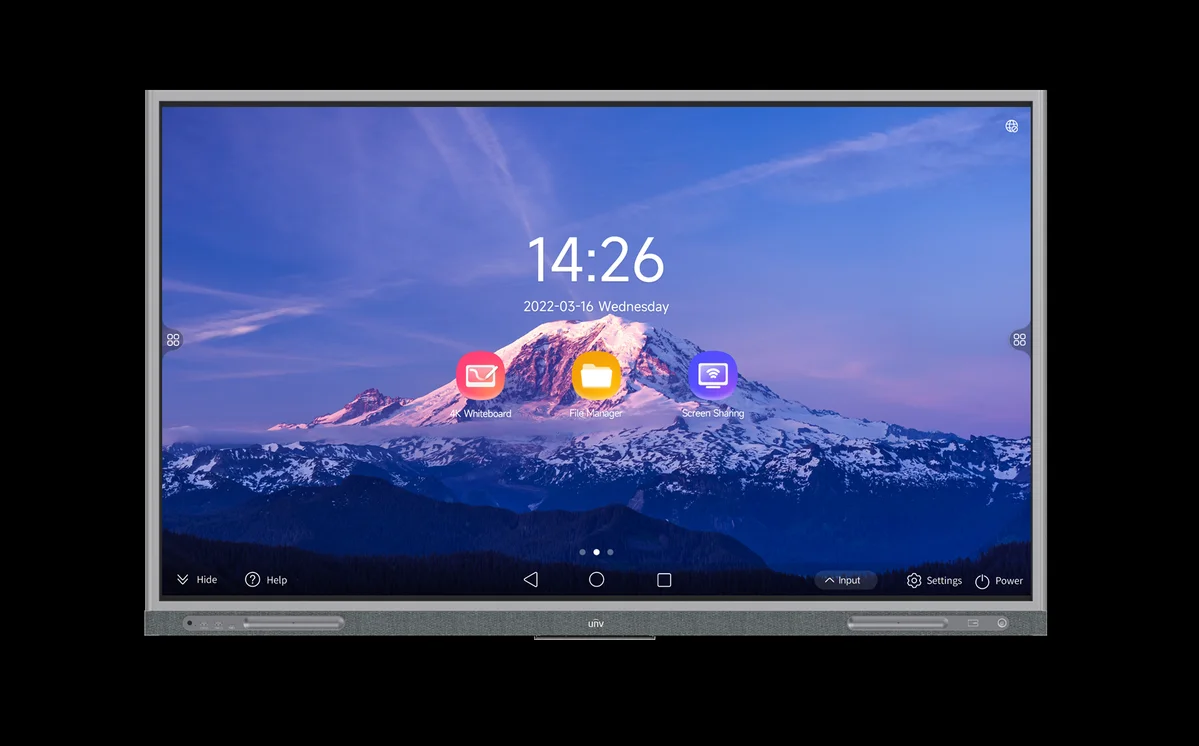

Wall-mounted or mobile trolley installation
Deployment Flexibility

Multiple Installation Methods

Choose between a low-profile architectural wall mount for permanent boardroom integration, or a heavy-duty 360° mobile caster trolley cart for versatile conference room sharing.

Academic Innovation

Education & Smart Campus Series: 6 Pedagogical Functions

Engineered to empower instructors, ignite student curiosity, and withstand demanding day-to-day classroom environments.

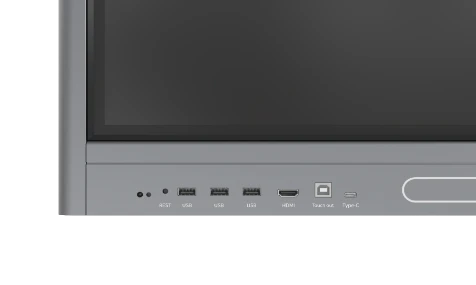

Front-facing buttons and interfaces
Teacher Ergonomics

Buttons & Interfaces

Convenient front-facing physical quick-keys (Power, Home, Back, Input, Volume) and front ports: Type-C (65W reverse laptop charging), HDMI In, USB 3.0, and Touch-USB for instant teacher plug-and-play.

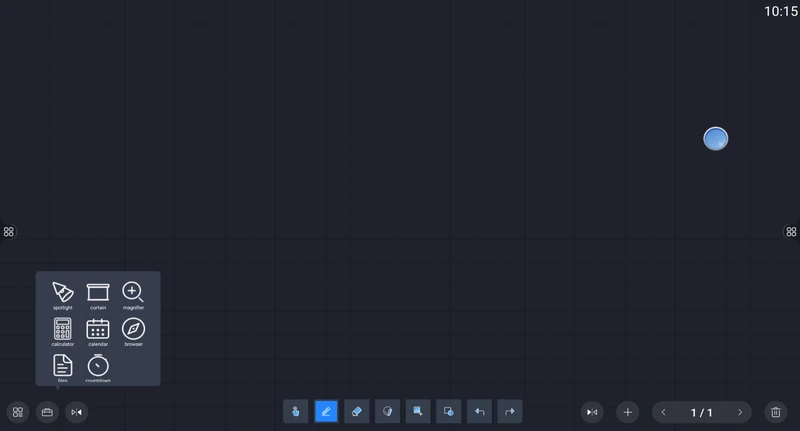

Powerful writing whiteboard tools
Pedagogical Toolkit

Powerful Writing Whiteboard

A comprehensive suite of dynamic teaching tools specially designed for educational instruction: geometry rulers, set-squares, protractor, compass, formula recognition, and split-screen multi-student writing.

Space saving all-in-one classroom display
All-In-One Value

Space Saving Architecture

The all-in-one design replaces fragile projectors, pull-down screens, external amplifiers, and loose wiring with a single, high-brightness 4K display that operates without classroom dimming.

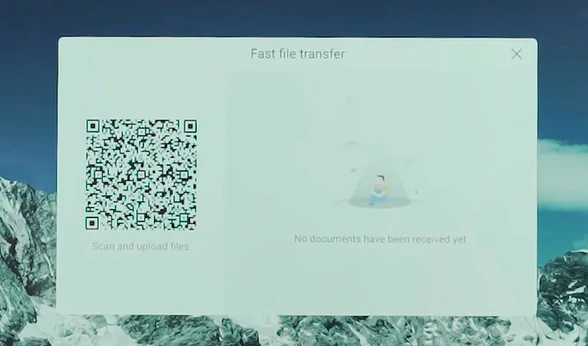

Scan QR code to transfer classroom notes
Student Retention

Instant File & Note Transfer

Scan to transfer whiteboard notes and lesson annotations directly to student smartphones without USB drives, greatly improving classroom efficiency and keeping students focused on concepts.

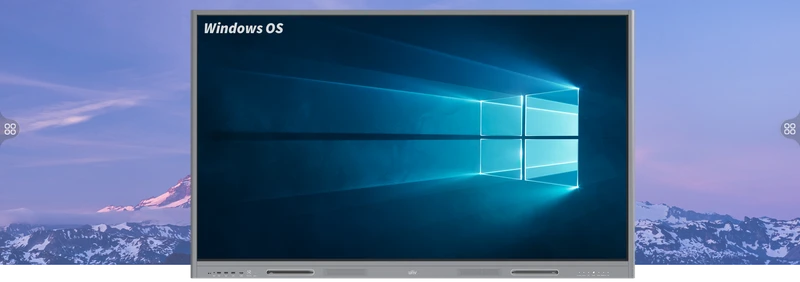

Dual operating systems Android and Windows via OPS
Hybrid Flexibility

Dual Operating System (Android & OPS)

Dual operating systems allow more software to run on the smart interactive display. Run Android teaching apps with instant-on startup, or switch to Windows 11 via pluggable Intel Core OPS modules.

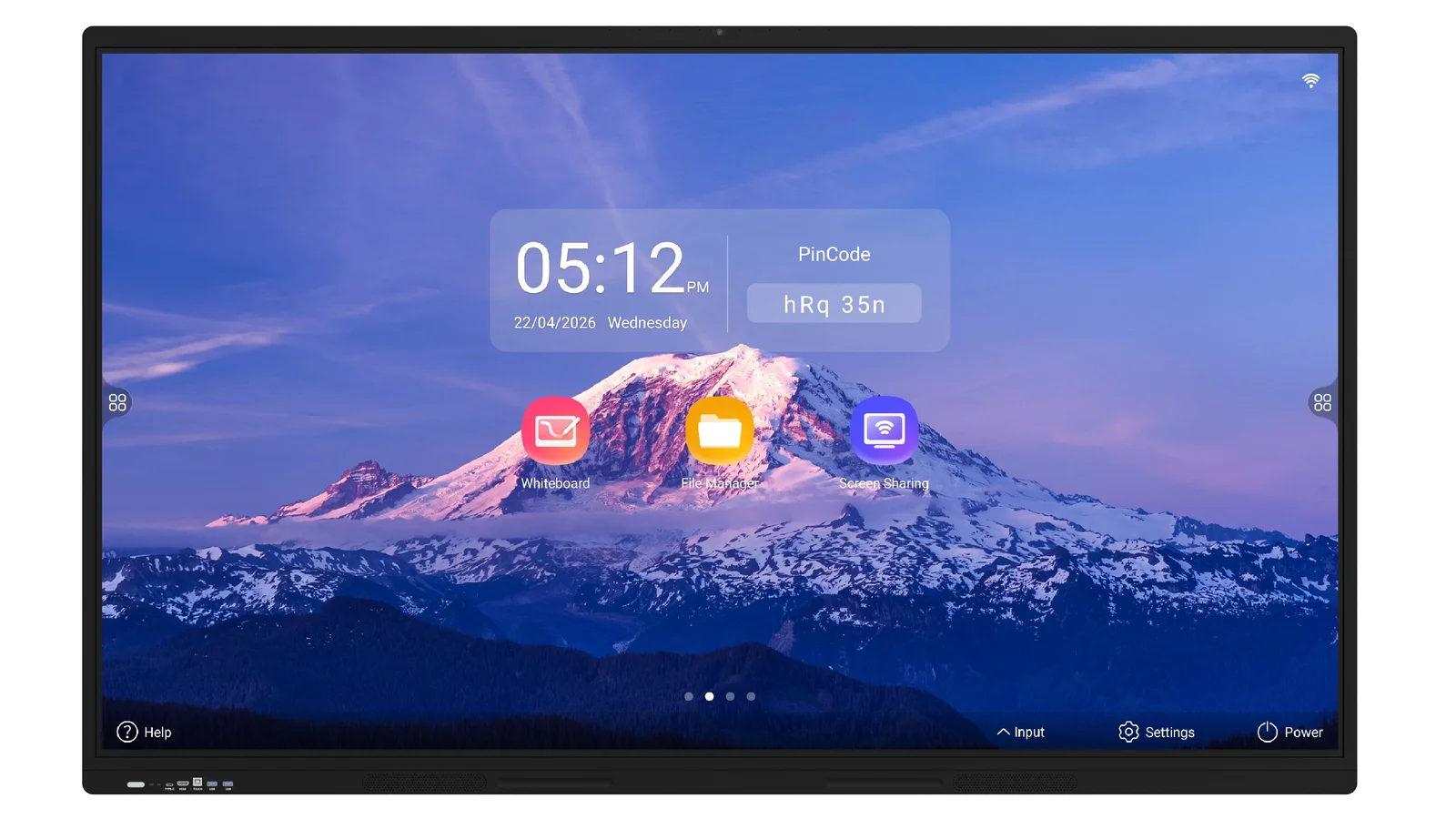

Flexible classroom mounting and mobile trolley
Campus Mobility

Multiple Installation Methods

Institutions can choose wall mounted or mobile installation according to actual campus needs, enabling dynamic sharing of interactive displays across laboratories and lecture halls.

Turnkey Ecosystem

Certified Modular Accessories & Expansion Hardware

Complement interactive flat panel displays with purpose-engineered plug-and-play expansion modules.

Pluggable OPS PC Modules

Intel Core i5 / i7 slot-in computing modules with up to 16GB RAM and fast NVMe SSD storage running Windows 11 Pro for full enterprise and specialized educational desktop software.

Wireless Screen Sharing Dongle

Plug-and-play Type-C and USB dongles enabling one-touch 4K laptop screen mirroring and two-way reverse touch control without software installation or network passwords.

Heavy-Duty Mobile Trolley Stand

Engineered steel mobile trolley cart with 360° lockable casters, integrated equipment shelf for conferencing gear, and internal cable management channels.

Low-Profile Engineered Wall Mount

Heavy-gauge steel VESA mounting bracket with anti-drop safety locks, engineered for secure installation on concrete, hollow-block, and steel-stud walls.

4K Camera & 8-Mic Module

Top-mounted high-definition 4K conferencing camera featuring automated speaker voice tracking, acoustic echo cancellation, and 120° ultra-wide field of view.

Infrared Intelligent Stylus Pens

Dual-tip passive magnetic infrared pens with differentiated nib diameters for fine-detail writing, instant eraser inversion, and multi-color team annotation.

Engineering Specifications

Interactive Display Series Comparison

Commercial engineering parameters across 65", 75", and 86" interactive panels.

Engineering Attribute Enterprise Collaboration Series Education Flagship Series Education Mainstream Series Education Standard Series
Available Screen Sizes 65", 75", 86" Diagonal 65", 75", 86" Diagonal 65", 75", 86" Diagonal 65", 75", 86" Diagonal
Native Panel Resolution 3840 × 2160 (4K UHD @ 60Hz) 3840 × 2160 (4K UHD @ 60Hz) 3840 × 2160 (4K UHD @ 60Hz) 3840 × 2160 (4K UHD @ 60Hz)
Panel Brightness & Contrast 350 cd/m² / 1200:1 Contrast 350 cd/m² / 1200:1 Contrast 350 cd/m² / 1200:1 Contrast 350 cd/m² / 1200:1 Contrast
Viewing Angle (H/V) 178° Horizontal / 178° Vertical 178° Horizontal / 178° Vertical 178° Horizontal / 178° Vertical 178° Horizontal / 178° Vertical
Screen-to-Body Ratio 93.6% Ultra-Slim Bezel 92.5% Narrow Bezel Classroom Metal Bezel Standard Metal Bezel
Optical Glass Bonding Optical Zero-Bonding (0mm Gap) Optical Zero-Bonding (0mm Gap) High-Precision Lamination 7H Toughened Anti-Glare Glass
Touch Technology Infrared Touch Frame Infrared Touch Frame Infrared Touch Frame Infrared Touch Frame
Simultaneous Touch Points 40 Points Multi-Touch 40 Points Multi-Touch 40 Points Multi-Touch 40 Points Multi-Touch
Touch Precision & Response ±1.0 mm / ≤2.0 ms ±1.0 mm / ≤2.0 ms ±1.0 mm / ≤2.0 ms ±1.0 mm / ≤2.0 ms
Memory & Storage 8GB RAM + 128GB ROM 8GB RAM + 128GB ROM 8GB RAM + 128GB ROM 8GB RAM + 128GB ROM
Operating System Android 13.0 (Google EDLA Certified) Android 13.0 (Google EDLA Certified) Android 14.0 Smart OS Android 14.0 Smart OS
Acoustic Audio System Dual-Channel + 6-Array Surround Integrated Front-Firing Stereo Integrated Front-Firing Stereo Integrated Stereo Speakers
Front-Facing Interfaces Type-C (65W Charge), HDMI, USB 3.0 Type-C (65W Charge), HDMI, USB 3.0 Physical Keys, Type-C, HDMI, USB Physical Keys, HDMI, USB 3.0
Pluggable OPS PC Slot Standard 80-Pin Intel OPS Slot Standard 80-Pin Intel OPS Slot Standard 80-Pin Intel OPS Slot Standard 80-Pin Intel OPS Slot
Wireless Screen Sharing 4-Split Screen BYOD + USB Dongle 4-Split Screen BYOD + USB Dongle Wireless Mirroring Supported Wireless Mirroring Supported
Whiteboard & QR Export One-Click Save & QR Download Math Tools + QR Student Export Teaching Tools + QR Export Basic Whiteboard + QR Export

Planning an Executive Meeting Suite or Smart Campus?

Connect with our visual systems engineers for room acoustic calculations, screen sizing assessments, and mobile stand deployment schedules across the UAE and GCC.

Request Interactive Quote
