Tiled Matrix Infrastructure

Commercial Ultra-Narrow Bezel LCD Video Walls

Industrial multi-panel LCD video walls engineered for continuous 24/7 mission-critical command centers, security surveillance operations, broadcast studios, and corporate monitoring hubs. Featuring razor-thin physical bezels (0.88mm, 1.7mm, 3.5mm), hardware auto-seam compensation smoothing, staggered scientific power sequencing, intelligent anti-burn-in pixel shifting, and built-in self-splicing daisy-chain looping up to 5×5 without external matrix decoders.

Request LCD Video Wall Quote Command & Control Blueprint LED vs. LCD Comparison

Commercial LCD Video Wall - Immersive Visual Experience

Bezel Architecture Matrix

Three Physical Bezel Width Architectures (46″ & 55″)

Industrial LCD video wall panels classified by physical seam gap, engineered for seamless modular scaling across any multi-screen array geometry.

Flagship Continuity

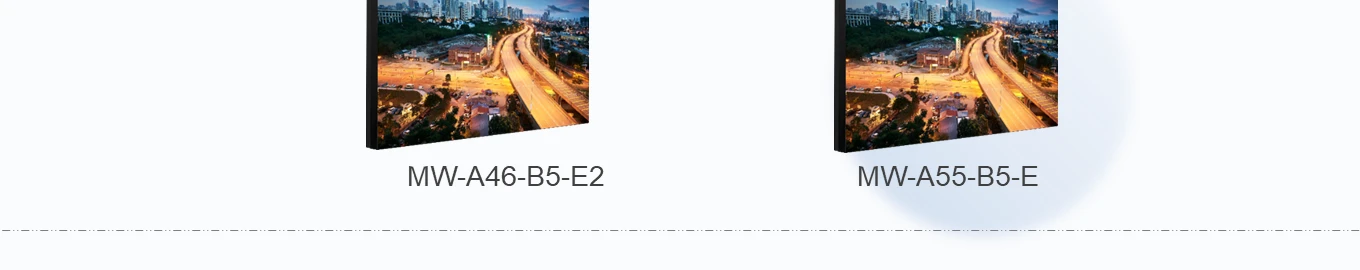

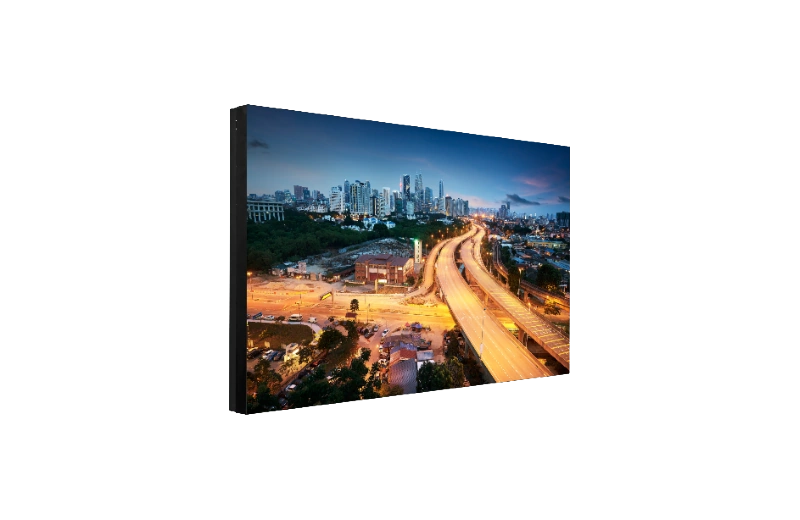

RNB 0.88mm Razor-Narrow Bezel

Ultra-minimal 0.44mm physical bezel margin per display (0.88mm combined seam), delivering virtually borderless visual immersion for mission-critical command centers, defense monitoring hubs, and luxury corporate reception walls.

Sizes: 46" & 55" Diagonal (16:9 Aspect Ratio)
Combined Seam: 0.88 mm Physical Bezel-to-Bezel
Luminance: 500 / 700 nits High-Brightness Options
Dynamic Contrast: Up to 5000:1 with Direct-Lit Dimming
Duty Rating: 24/7/365 Continuous Industrial Operation
Key Applications: Defense Command, C-Suite Video Walls, Broadcast Studios

Inquire 0.88mm RNB →

Surveillance Standard

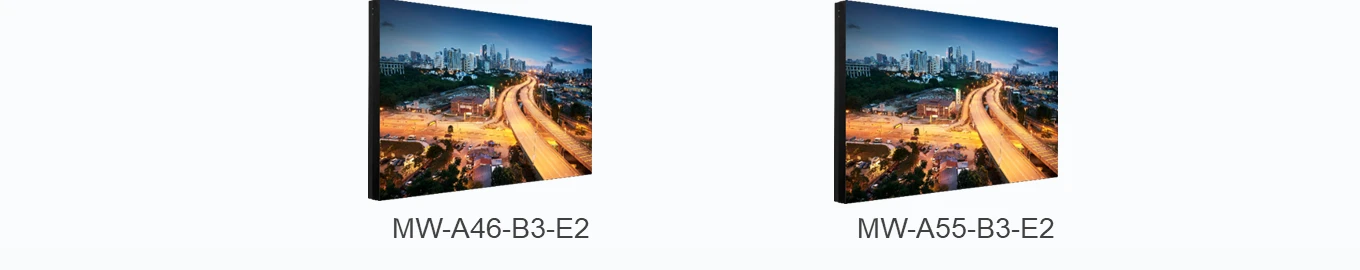

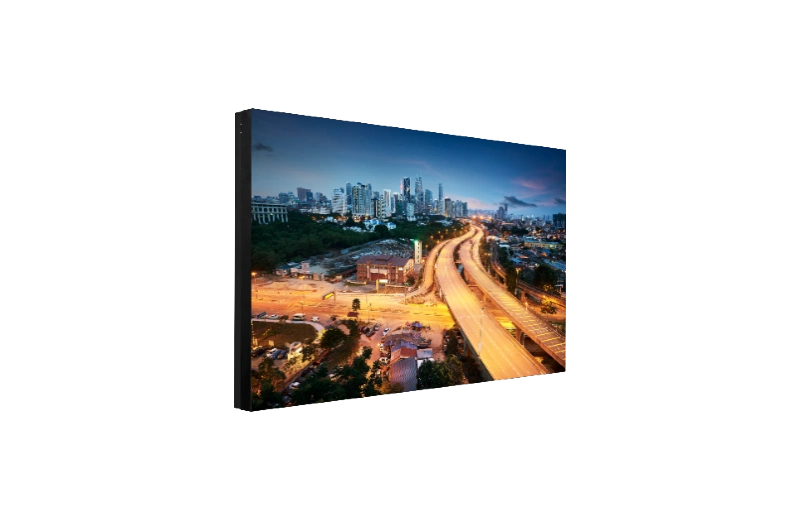

ENB 1.7mm Extreme Narrow Bezel

Balanced 0.85mm bezel margin per display (1.7mm combined seam), serving as the proven global benchmark for emergency dispatch centers, municipal CCTV monitoring networks, and 24/7 transportation command hubs.

Sizes: 46" & 55" Diagonal (16:9 Aspect Ratio)
Combined Seam: 1.7 mm Physical Bezel-to-Bezel
Luminance: 500 nits Industrial Glare-Resistant Output
Static Contrast: 4000:1 High Contrast Ratio
Duty Rating: 24/7/365 Continuous Industrial Operation
Key Applications: Security Operation Centers (SOC), Traffic Command, SCADA

Inquire 1.7mm ENB →

Commercial Grade

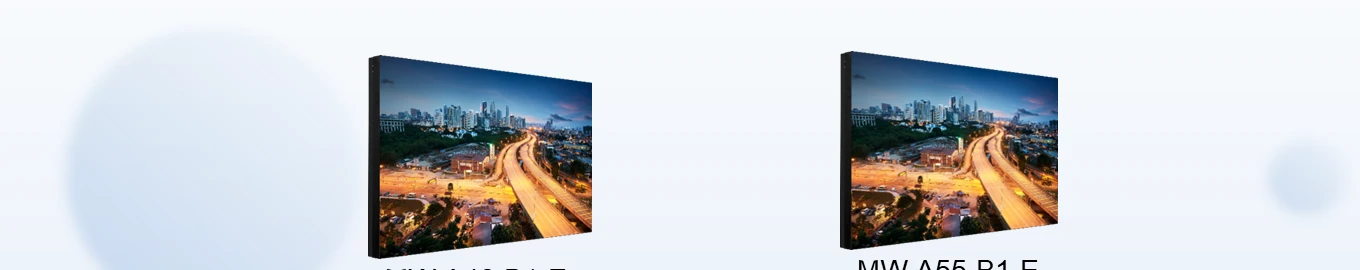

UNB 3.5mm Ultra-Narrow Bezel

Cost-effective 1.75mm bezel margin per display (3.5mm combined seam), offering rugged, high-resolution commercial tiling for retail shopping malls, university lecture halls, corporate reception lobbies, and convention hotels.

Sizes: 46" & 55" Diagonal (16:9 Aspect Ratio)
Combined Seam: 3.5 mm Physical Bezel-to-Bezel
Luminance: 500 nits High-Clarity Anti-Glare Display
Static Contrast: 4000:1 High Contrast Ratio
Duty Rating: 24/7/365 Continuous Industrial Operation
Key Applications: Shopping Mall Wayfinding, University Auditoriums, Hotel Lobbies

Inquire 3.5mm UNB →

Display Excellence

Six Optical & Visual Performance Pillars

Proprietary hardware algorithms deliver uncompromised image integrity, geometric vector accuracy, and operator comfort across tiled matrices.

Vector Smoothing

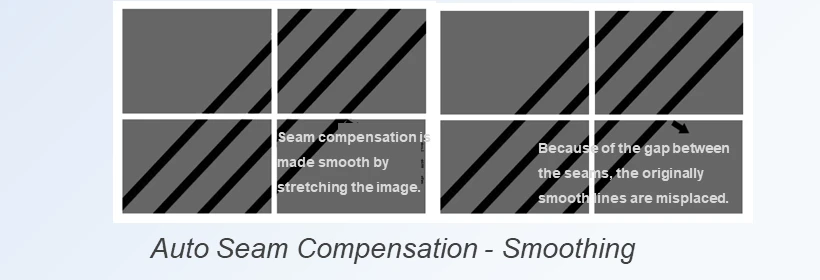

Auto Seam Compensation (Smoothing)

Hardware-level edge interpolation automatically calculates the physical bezel gap between adjacent panels. It dynamically restores continuous diagonal lines, geometric vectors, and text, completely eliminating disruptive visual jaggedness across borders.

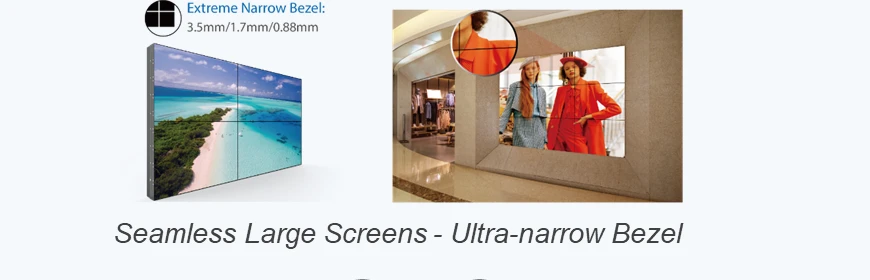

Near-Seamless Canvas

Seamless Large Screens • Ultra-Narrow

Chassis architecture minimizes structural borders down to 0.88mm, fusing multiple modular panels into a single vast visual canvas ideal for high-density geographic information systems (GIS), multi-feed CCTV walls, and SCADA infrastructure grids.

Operator Health

Eye Protection Mode (Low Blue Light)

TUV-aligned low blue light spectrum management combined with DC flicker-free backlight dimming protects security monitoring personnel during demanding 12-hour continuous shifts, reducing optical fatigue and headaches in dark control centers.

178° Viewing Angle

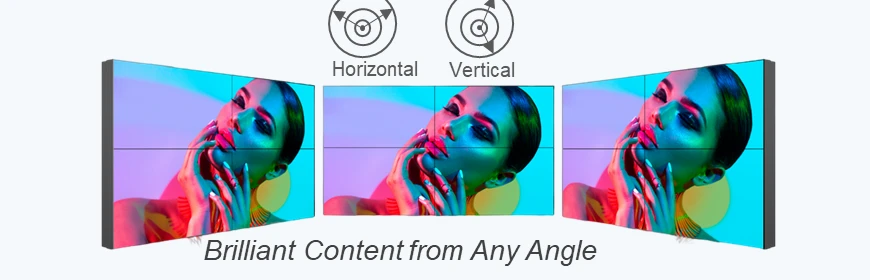

Brilliant Content from Any Angle

Advanced in-plane switching (IPS) liquid crystal alignment provides an ultra-wide 178° horizontal and 178° vertical viewing envelope. Off-axis operators view uniform color fidelity, sharp contrast, and zero chromatic shift from any workstation.

Algorithmic Upscaling

Super-Resolution Image Enhancement

Built-in FPGA hardware image enhancement engines analyze standard-definition and 1080p surveillance video streams in real-time, sharpening textural edges, eliminating block noise, and boosting fine contrast for critical video evidence review.

Long-Term Color Lock

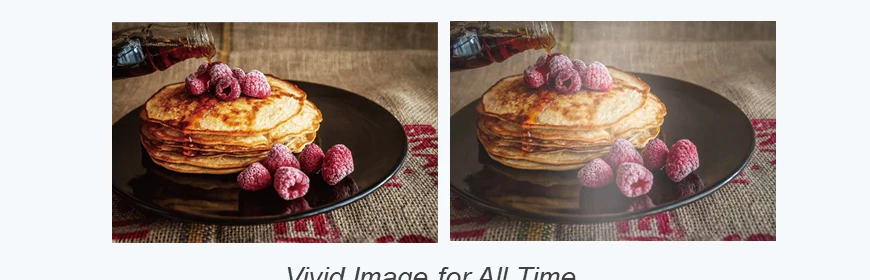

Vivid Image for All Time (Gamma Calibration)

Multi-point factory gamma aging calibration and optical uniform backlight matching guarantee color temperature stability (±100K) and luminance balance across every panel, preventing checkerboard coloration shifts over years of operation.

System Architecture

Screen Protection & Advanced Hardware Features

Mission-critical hardware safeguards designed to ensure facility electrical safety, extend liquid crystal panel life, and streamline multi-screen routing.

Power on Scientifically Staggered Power Delay Diagram

Grid Inrush Protection

Power on Scientifically (Staggered Delay)

Autonomous sequential boot sequencing introduces microsecond power-on delays across panels in large video arrays (e.g. 3×3, 4×4, 5×5), completely preventing electrical inrush current surges that trip facility circuit breakers.

Panel Longevity

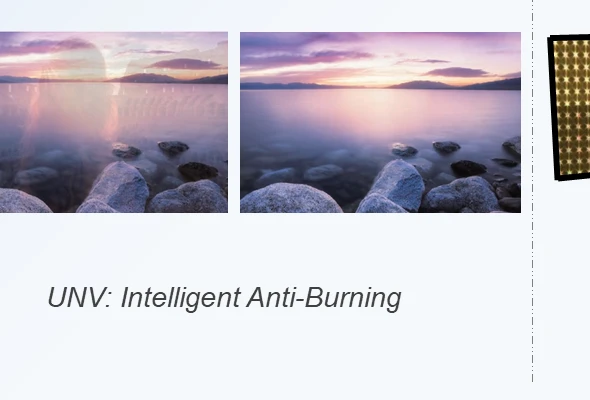

Intelligent Anti-Burning Technology

Integrated micro-displacement algorithms subtly shift static CCTV video grid layouts, on-screen camera channel identifiers, and camera overlays by a few pixels at scheduled intervals, eliminating liquid crystal burn-in and image ghosting.

Zero Splitters

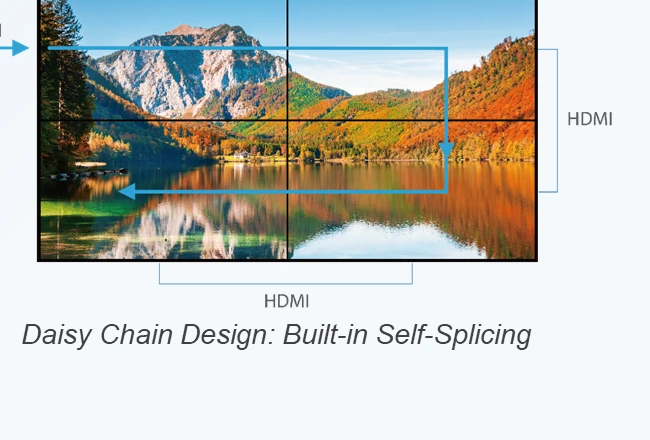

Built-In Self-Splicing Daisy Chain

Direct HDMI and DisplayPort loop-through architecture enables self-splicing video wall arrays up to 5×5 (25 displays) without requiring external matrix switchers, distribution amplifiers, or complex third-party video wall controllers.

Commercial DRM

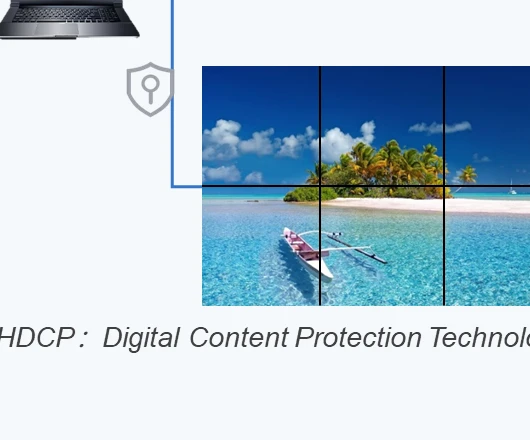

HDCP Digital Content Protection

End-to-end HDCP compliance guarantees flawless playback of encrypted commercial broadcasts, corporate presentations, satellite video streams, and copyrighted digital media without handshake errors or black screens.

Dynamic Contrast

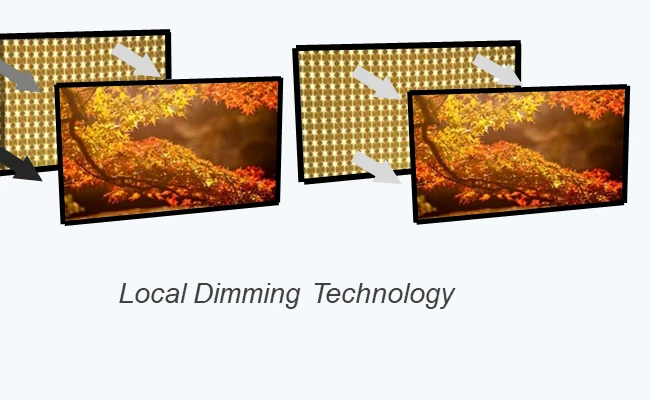

Local Dimming Backlight Technology

Matrix direct-lit LED backlights dynamically modulate regional illumination based on image luminance. Dark surveillance footage produces true deep blacks while brightly lit zones maintain peak brilliance with reduced thermal output.

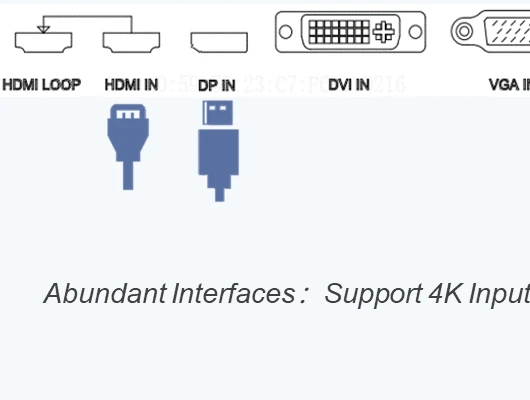

Abundant Interfaces Support 4K Input Ports

Universal Connectivity

Abundant Interfaces • 4K Input Support

Industrial multi-format interface suite: HDMI In, HDMI Loop Out, DisplayPort In, DVI In, VGA In, and RS-232 In/Out control loops with native 4K signal input support, ensuring universal compatibility with modern IP video decoders.

Turnkey Hydraulic Mounting & Front-Service Maintenance

Maintaining large video wall installations requires millimeter-level precision and rapid panel access. LED HOUSE supplies modular 6-axis micro-adjustable hydraulic pop-out wall brackets engineered specifically for recessed control room niches.

✓ Single-Panel Pop-Out: Gentle push-to-release front servicing enables any middle panel to be extracted within seconds without dismantling adjoining screens.
✓ 6-Axis Micro-Adjustment: Independent X, Y, Z, pitch, yaw, and roll alignment screws ensure laser-flat planarity across every seam.
✓ Thermal & Power Ducting: Integrated cable management conduits and passive convection channels maintain optimal airflow for 24/7 reliability.

LCD video wall front service hydraulic pop out bracket and daisy chain system

Engineering Specifications

Commercial LCD Video Wall Specification Matrix

Comprehensive physical, optical, electrical, and structural parameters for 46″ and 55″ industrial video wall displays.

Tier & Size	Physical Bezel-to-Bezel	Resolution & Aspect	Brightness & Contrast	Splicing & Interfaces	Duty Rating & Lifespan
55" Razor-Narrow (RNB)	0.88 mm (0.44mm even margin)	1920 × 1080 FHD (4K Input) • 16:9	500 / 700 nits • 5000:1 Dynamic	Built-in Loop up to 5×5 • HDMI/DP/DVI/VGA	24/7 Continuous Duty • ≥60,000 Hours
46" Razor-Narrow (RNB)	0.88 mm (0.44mm even margin)	1920 × 1080 FHD (4K Input) • 16:9	500 nits • 4000:1 Dynamic	Built-in Loop up to 5×5 • HDMI/DP/DVI/VGA	24/7 Continuous Duty • ≥60,000 Hours
55" Extreme Narrow (ENB)	1.7 mm (0.85mm even margin)	1920 × 1080 FHD (4K Input) • 16:9	500 nits • 4000:1 Static	Built-in Loop up to 5×5 • HDMI/DP/DVI/VGA	24/7 Continuous Duty • ≥60,000 Hours
46" Extreme Narrow (ENB)	1.7 mm (0.85mm even margin)	1920 × 1080 FHD (4K Input) • 16:9	500 nits • 4000:1 Static	Built-in Loop up to 5×5 • HDMI/DP/DVI/VGA	24/7 Continuous Duty • ≥60,000 Hours
55" Ultra-Narrow (UNB)	3.5 mm (1.75mm even margin)	1920 × 1080 FHD (4K Input) • 16:9	500 nits • 4000:1 Static	Built-in Loop up to 5×5 • HDMI/DP/DVI/VGA	24/7 Continuous Duty • ≥60,000 Hours
46" Ultra-Narrow (UNB)	3.5 mm (1.75mm even margin)	1920 × 1080 FHD (4K Input) • 16:9	500 nits • 4000:1 Static	Built-in Loop up to 5×5 • HDMI/DP/DVI/VGA	24/7 Continuous Duty • ≥60,000 Hours
